ML-Lite Overhead Lamp

Description

ML-Lite Product Description

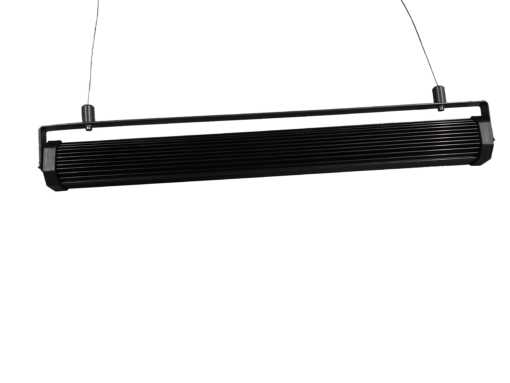

Inspection Tech are pleased to launch the revolutionary ML-Lite 100% designed and built in the UK, it is a single unit that combines a lightweight, low form-factor stationary overhead UV illumination source with sophisticated machine vison capabilities that automatically detect and size fluorescent indications.

The system’ automatically detects all relevant indications and the software (i) sizes them (ii) measures their area and (iii) automatically overlays their location on a photographic image of the part. ALL inspections (pass or fail) get permanently recorded in a database for 100% QA / compliance purposes and a report is generated in just seconds.

Benefits:

•100% indication identification
•100% quality control
•Improved Gauge R&R:
•Significant operational cost savings
•Increased productivity
•Rapid report generation

Total compliance with:

• Rolls Royce RRES90061
• Airbus AITM6-1001
• ASTM E3022
• ASTM 2297
• E165
• E1417

All our Lamps have the ITECP Embedded Controller Processing unit. The ITECP provides the following benefits:

• Far tighter control of luminous power outputs
• Guarantees that UV output remains at the required level by compensating for temperature of the LEDs
• Full power and output stability in less than 3s
• Every ML-Lite Lamp for fluorescent NDT is supplied with a manufacturer’s certificate of conformance for use with fluorescent liquid penetrant and magnetic particle testing

Alternatively, see the Strip Light Aero.
