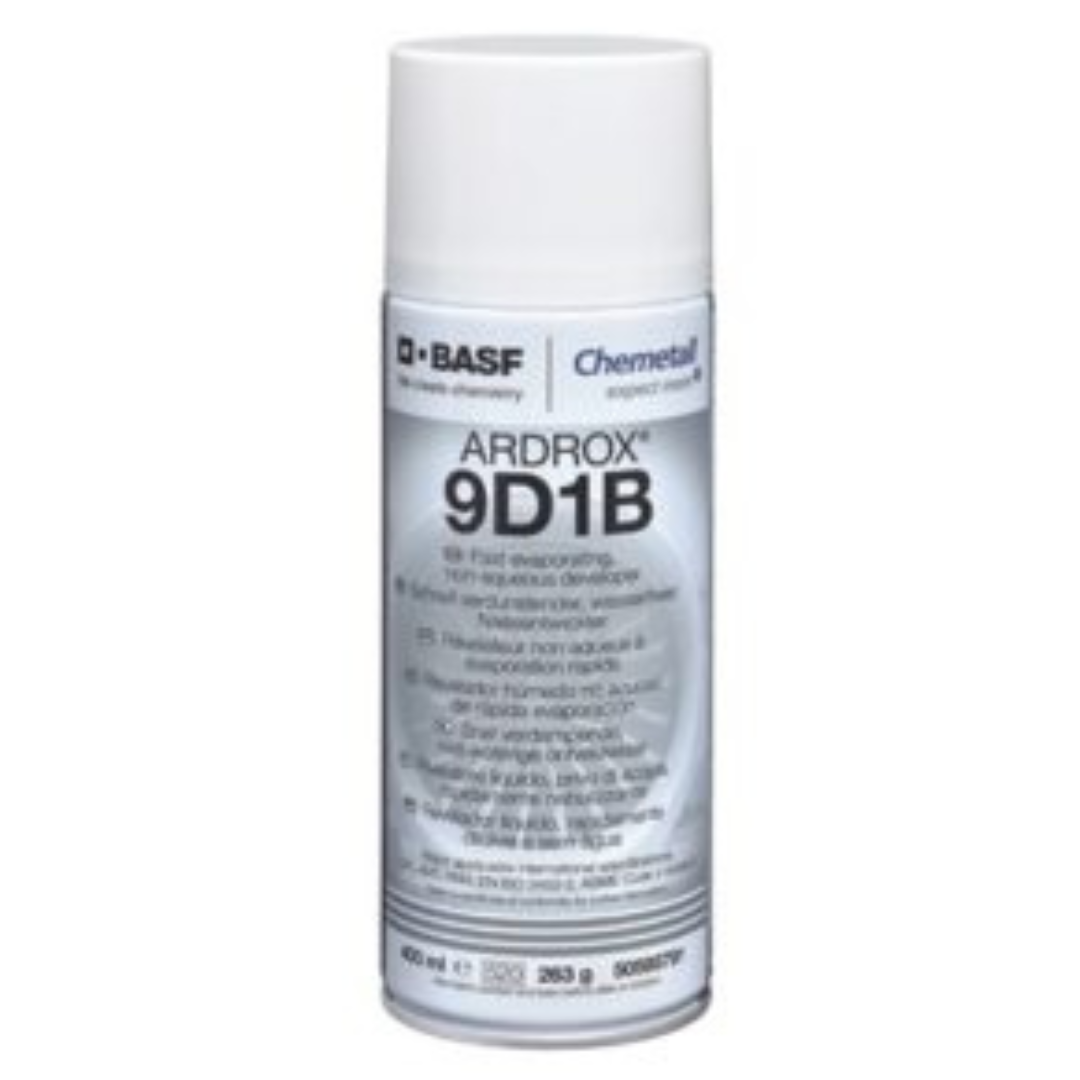

Ardrox 9D1B Developer

Ardrox 9D1B Developer quantity

Add to cart

Add to quote

Product added to quote

View/Send Quote Request

Description

Ardrox 9D1B Developer Powder, Solvent Suspended.

Ardrox 9D1B is a suspension of an inert white powder in a quick drying solvent. It has a low sulphur, halogen and alkali metal content. Ardrox 9D1B can be used with any of the Ardrox range of visible and fluorescent penetrants.

Specification

• EN ISO 3452-2
• ASME Code V Article 6.
• SAE AMS 2644

Appearance	White solid particle in a clear liquid
Density	0.88g/ml @ 20°C
Flash Point	-18°C

Instructions for use

Pre-cleaning, penetrant & excess penetrant removal

Clean part with 9PR5 (or equivalent) before applying the penetrant. Apply cleaner to the part and wipe clean with cloth. Surface has to be free of grease, oil and dirt. Allow part to dry before applying penetrant. Apply a thin even film of penetrant to cover test area and allow penetration to cover test area and allow penetration as per the required time.

Remove excess surface penetrant with clean cloths, pre-moistened with cleaner. Alternatively removal can be affected by gentle water spray or by rinsing with water (for applications over 5°C). Do not flush surface with cleaner as sensitivity will be impaired. Repeat procedure until surface penetration has been removed. Thoroughly dry the component surface before developer application.

Developing

Ardrox 9D1B are solid suspensions of solid particles which settle-out on standing; and therefore, aerosols and bulk containers must be shaken thoroughly before and during use.

Spray thin, even developer film over are to be inspected (spraying distance 30cm) surface temperature should be between -10°C and 50°C. 9D1B must be applied by a light even spray (immersion or brushing will cause a loss of process sensitivity). When 9D1B is used as part of a fluorescent penetrant process, it should be applied by successive spraying until a translucent layer is achieved.

Allow 10-30 minutes developing time before evaluation.

Read up on the technical data sheet and request a free quote here,

Additional information

Manufacturer	Chemetall
Package Size	Aerosol can 400ml, Case of aerosols 10×400ml
