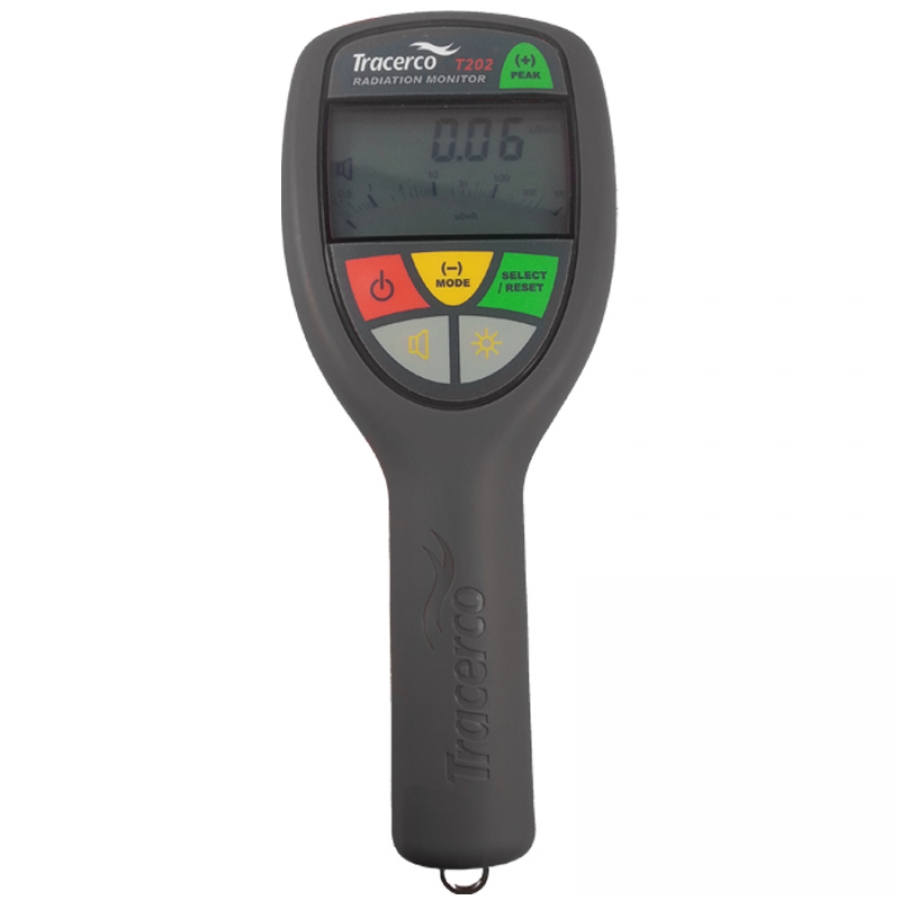

Tracerco T202

Tracerco T202 quantity

Add to cart

Add to quote

Product added to quote

View/Send Quote Request

Description

Product information

The TRACERCO T202 Dose Rate Monitors, suitable for those working in Oil & Gas, Medical and Life Sciences, Nuclear, CBRNe & Emergency Services, NDT, Manufacturing & Industrial and Environmental and Waste Management industries, is an intrinsically safe device.

Radioactive materials are employed routinely in various industries to facilitate a wide range of measurements, including Process Level Control, Fluid Separation and Non-Destructive Testing. In order to protect the workforce from exposure and to ensure compliance with relevant legislation, radiation dose rates must be carefully monitored and controlled.

The TRACERCO T202 Dose Rate Monitors have been specifically designed to combine intrinsic safety with a ruggedised but lightweight construction. They also provide additional key operational features, such as personal dose integration and peak dose rate memory.

Key Advantages:

• Intrinsic safety for use in potentially explosive environments including zones 0, 1 and 2 hazardous areas – eliminates the need for a specific hot work permit.
• Detects x-rays and gamma rays down to 60keV.
• Digital bar graph display: 0.1 – 1000µSv/h.
• Digital dose rate indication: 0-10,000µSv/h.
• Displays down to 0.1µSv/h.
• Integrated dose function – allows the instrument to be used as a personal dosimeter.
• Peak dose rate memory – allows maximum exposure levels to be recorded remotely enabling operators to minimise their dose uptake.
• Displays calibration due date.
• Back light facility.
• Audible response with adjustable alarm thresholds.
• Ruggedised nylon 6/6 construction provides an all-weather instrument.

Specification:

Radiation Detected	X-rays and gamma rays in range 59 keV to 1332 keV
Detector	Single halogen, energy compensated Geiger Muller tube
Dose Rate Range	Bar graph display 0-1000µSv/h Digital numeric display 0-10,000µSv/h Digital numeric display 0-1000mRem/h
Accumulated Dose Range	Digital numeric display 0-10,000µSv/h
Peak Radiation Dose Rate	Digital numeric display 0-10,000µSv/h
Variation with Temperature	Less than 15% over operating temperature range
Humidity Range	0 to 95%
Ingress Protection Rating	Rated IP65 (dust tight and will withstand water jets)
Case Material	Static dissipative nylon body with ABS window
Hazardous Area Certification Code	Equipment code Ex ia IIC T4 (-20°C ≤ TA ≤ + 50°C) Ga. ATEX code II 1G. Certificate No. IECEx BAS.05.0064.FM Approved for Class 1 Div 1 Group A, B, C, D Ta=50°C Suitable for hazardous area zones 0, 1 & 2
Weight	500g
Battery	Varta Hi Energy 6LP3146 and Ansmann 6LF22
Battery Life	100 hours typically with background radiation
Low Battery Indication	On 4 hours battery life remaining
Variation with Battery Voltage	Less than 2%
Standard Compliance	BSEN 61526, EN55011, IEC60079-11, IEC61010-1 FM Class 3610, FM Class 3810, ANSI/ISA 61010-1, ANSI/ISA 60079-0, ANSI/ISA 60079-11, CSA C22.2 No. 1010.1, CSA E60079-11



POA

Request a free quote today for a Tracerco T202.



Additional information

Manufacturer	TRACERCO
