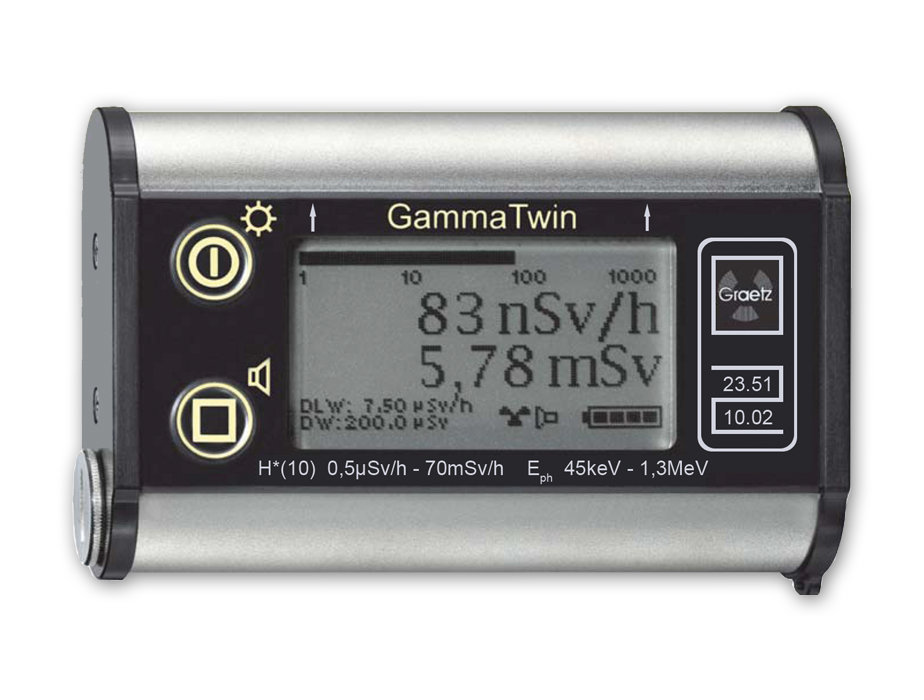

The Graetz Gamma Twin is a small and handy dose rate meter for the measurement of gamma radiation and x-rays for ambient dose rate equivalent H*(10) and ambient dose equivalent H*(10) (local dose). The Gamma Twin is PTB-approved, equivalent to this approval is NPL (UK) and NIST (USA).

The detector contains an energy compensated Geiger-Muller tube and has a large digital indication of measured values on LC display (backlit). The unit has selectable simultaneous or separate indications of dose and dose rate, additionally analogue indication of dose rate (logarithmic bargraph).

The Graetz Gamma Twin is used in order to protect the workforce from exposure and to ensure compliance with relevant legislation, radiation dose rates must be carefully monitored and controlled. Dose rate meters with alarm function for personal radiation protection when handling ionising radiation and for the detection of the dose rate and of the local dose.

The Gamma Twin is suitable for those working in NDT, Fire Brigades, Civil Defence, Authorities, Customs, Shipping Companies, Nuclear Medicine, Nuclear Technology, Industry, Chemistry, Research, Manufacturing & Industrial, Environmental and Waste Management industries

Main features:

• 4 pre-set dose and dose rate alarm thresholds; upon request GRAETZ changes the standard alarm thresholds according to customer requirements
• Switchable acoustic single-pulse indication
• Automatic and continuous storage of the dose into a non-volatile memory
• Storage of the dose and of set parameters even at battery change
• Permanent self test
• Designed for rough use, housing made of aluminium, protection class IP54 (splash proof)
• Menu-driven user navigation
• Supplied with a robust nylon bag

Specification of Graetz Gamma Twin:

Dose rate indication range:	0nSv/h – 70mSv/h
Dose rate measuring range:	0.5µSv/h – 70mSv/h
Dose indication range:	0nSv – 1.0Sv
Dose measuring range:	0.5µSv/h – 1.0Sv
Energy range:	45keV – 1.3MeV
Dose rate alarm thresholds:	7.5µSv/h, 25µSv/h, 40µSv/h, 300µSv/h
Dose alarm thresholds:	200µSv/h, 500 µSv/h, 1000µSv/h, 2000µSv/h
Temperature range:	-20°C up to +60°C
Power supply:	2 batteries 1.5V (type AAA)
Acoustic alarm:	80dB(A) measured in 30cm distance
PTB-Approval No.:	23.51 / 10.02
Dimensions:	26×66×103mm
Weight:	190g (with batteries)

Request a free quote today for a Graetz Gamma Twin.

Additional information

Manufacturer	GREATZ
