ZL-27A Penetrant

Package Size

Choose an optionBulk 200LBulk 25LAerosol can 400mlCase of aerosols 10×400mlClear

ZL-27A Penetrant quantity

Add to cart

Add to quote

Product added to quote

View/Send Quote Request

Description

Product information

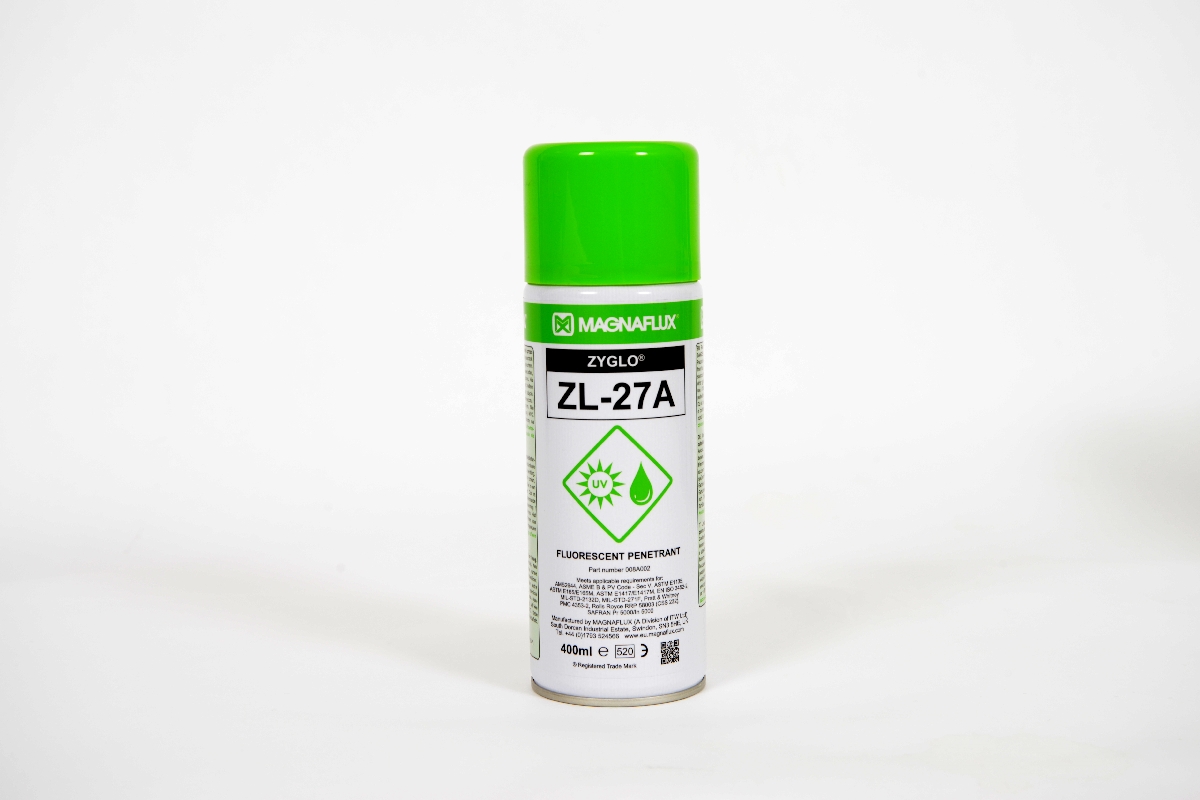

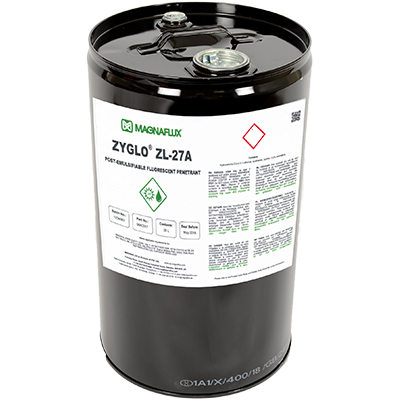

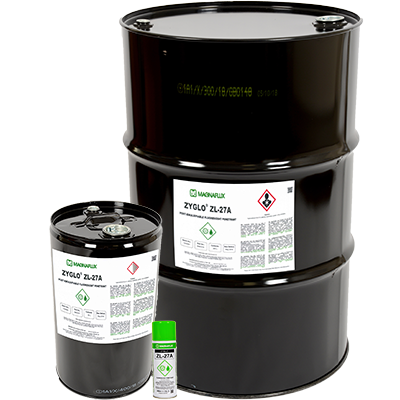

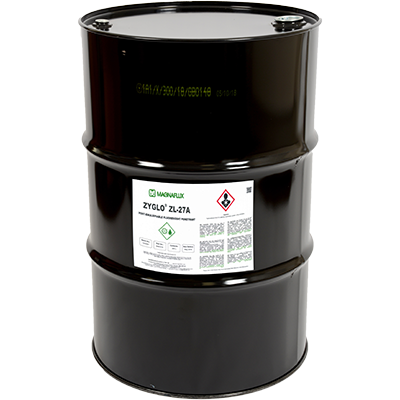

Level 3 Post Emulsifiable Fluorescent ZL-27A Penetrant

Post-emulsifiable ZL-27A is a Level 3, high-sensitivity Type 1 penetrant designed for inspections which require maximum process control and reliability, such as safety-critical aerospace testing.

Since ZL-27A is not water soluble, there is minimal risk of this penetrant being removed from a fine or shallow defect through over-washing to provide the highest reliability of any penetrant inspection method.

ZL-27A has a high flash point and provides long tank life when used in open dip tanks, but this penetrant can also be applied in a variety of other ways, including electrostatic spray.

To remove surface penetrant before developer application, use ZE-4E Method B lipophillic emulsifier or ZR-10E Method D hydrophillic emulsifier can be used.

ZL-27A is listed on the QPL SAE AMS 2644 Qualified Product List and is approved for use by Pratt & Whitney

Benefits

Improve indication detection

• Clear, bright indications are easier to detect due to high UV and thermal stability – even for small flaws and discontinuities
• Indications stand out more since background fluorescence is minimised; emulsifiers only remove surface penetrant without the risk of over-washing

Maximise penetrant inspection process control

• Prevents over-washing since the product cannot be removed with water (unless combined with an emulsifier)
• PE penetrant system is less susceptible to human error since only surface penetrant is removed in the final rinse stage

Wide range of inspections

• Inspect a wide range of high-value components without fear of corrosion or specification non-conformance
• Meets all major industry and NDT specification requirements, including Aerospace Prime and OEM specs, AMS 2644 and ISO 3452

Request a quotation for ZL-27A

View product information provided by Magnaflux.

Additional information

Manufacturer	Magnaflux
Package Size	Bulk 200L, Bulk 25L, Aerosol can 400ml, Case of aerosols 10×400ml
