Colenta INDX 43-3

Out of stock

Description

Product information

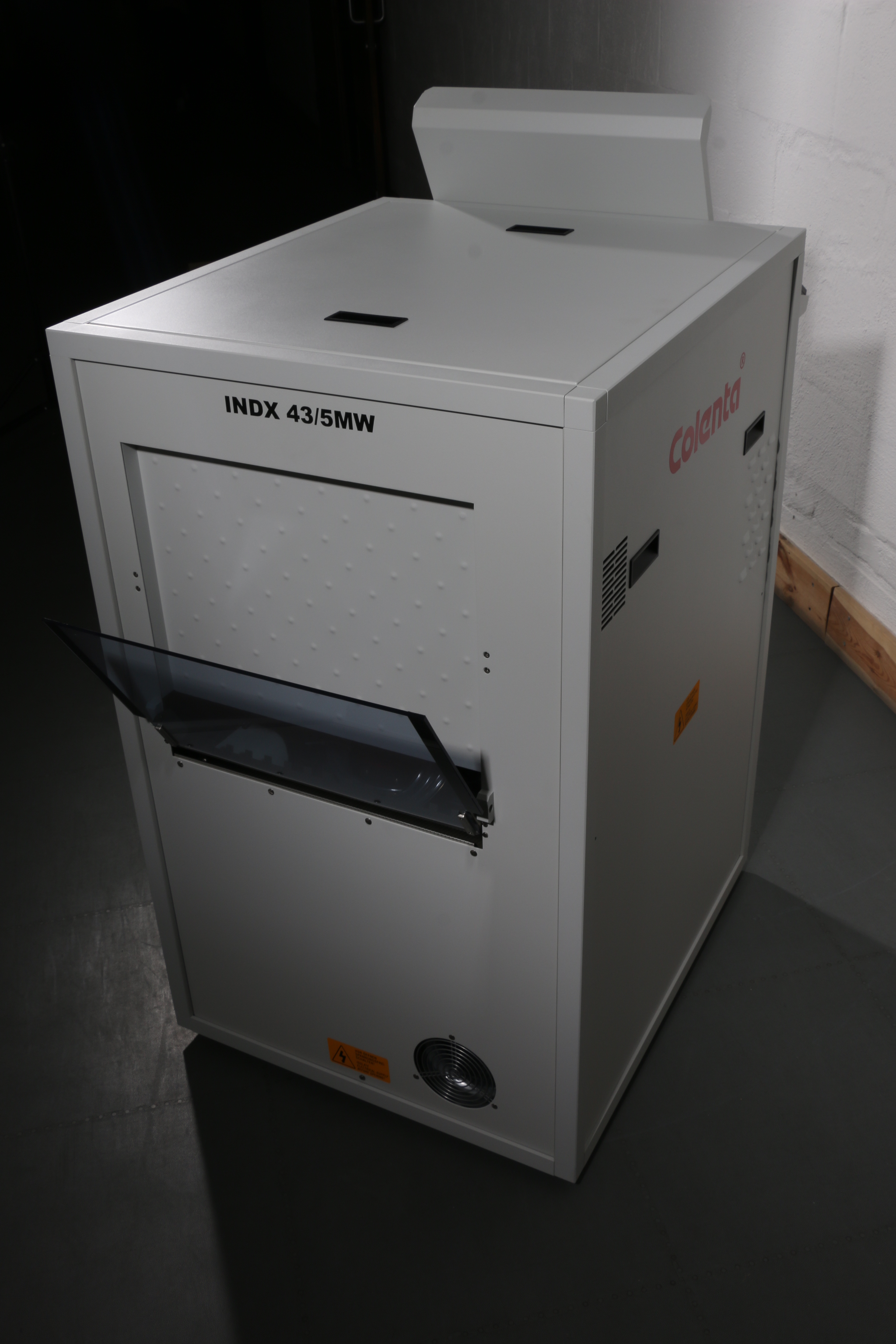

The Colenta INDX 43-3 Film Processor is capable of processing all types of industrial x-ray films

INDX-model processors have 9 programmable processing channels, an intermediate rinse bath rack system, feed in table, hose/tube connection (100 mm dia.) facility for ventilation of the processors wet section to an external exhaust fan and supplied with 2 x 30 litre replenishment storage tanks

Main features of Colenta INDX 43-3

Low Level monitoring of all Tank solutions.

Automatic Solution Tank “Top-Up” control on “Start-Up”

“Work in Progress” monitoring

Rep storage tanks

Prepared to connect the processor to an external exhaust air system

Specifications:

Processing applications	All types of industrial x-ray films
Film thickness	0.10mm – 0.18mm
Material width	Minimum 7.5cm – Maximum 43cm
Material length	Minimum 10cm



Time in Developer	Minimum 32 seconds	Maximum 176 seconds
Intake Speed	77cm/minute	14cm/minute
Cycle Time – dry to dry	156 seconds	858 seconds



Tank Capacity

Developer	9 Litres
Fixer	8 Litres
Wash water	8 Litres



Solution heating (Fix and Dev)	Adjustable in a range of 18°C – 43°C (separate inline 350W/550W heaters)
Dryer	Warm Air Adjustable in a range of 18°C – 55°C



Replenishment	Fully automatic Replenishment is microprocessor controlled and calculated from information received from sensors measuring the width and length of material entering the processor. Replenishment cycles are variable
Wash Water Distribution	Built-in 3 way magnetic valve
Wash Water Flow Rate	1.5 – 2 Litre/minute when film is processed
Wash Water Supply Pressure	3-10 Bar
Wash Water Supply	Filtered at temperature of 10°C – 25°C with ¾” hose connection
Wash Water Drain	32mm 5/4” hose or tube



Weight:

Empty             132Kg

Filled              153Kg

 Request a free quote today for Colenta INDX 43-3.





Additional information

Manufacturer	BALTEAU NDT
