Colenta INDX 43 2-0b

Out of stock

Description

Product Information

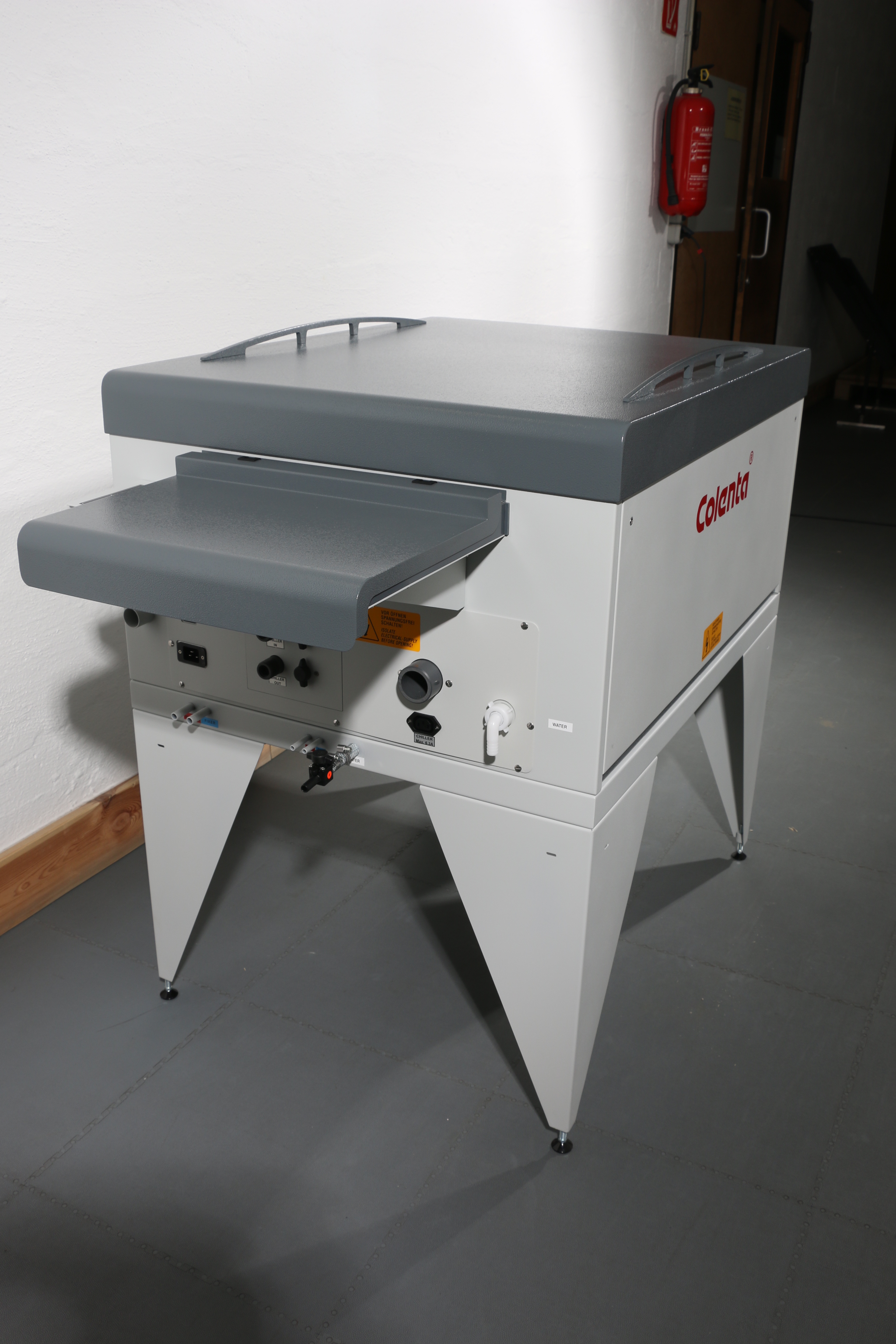

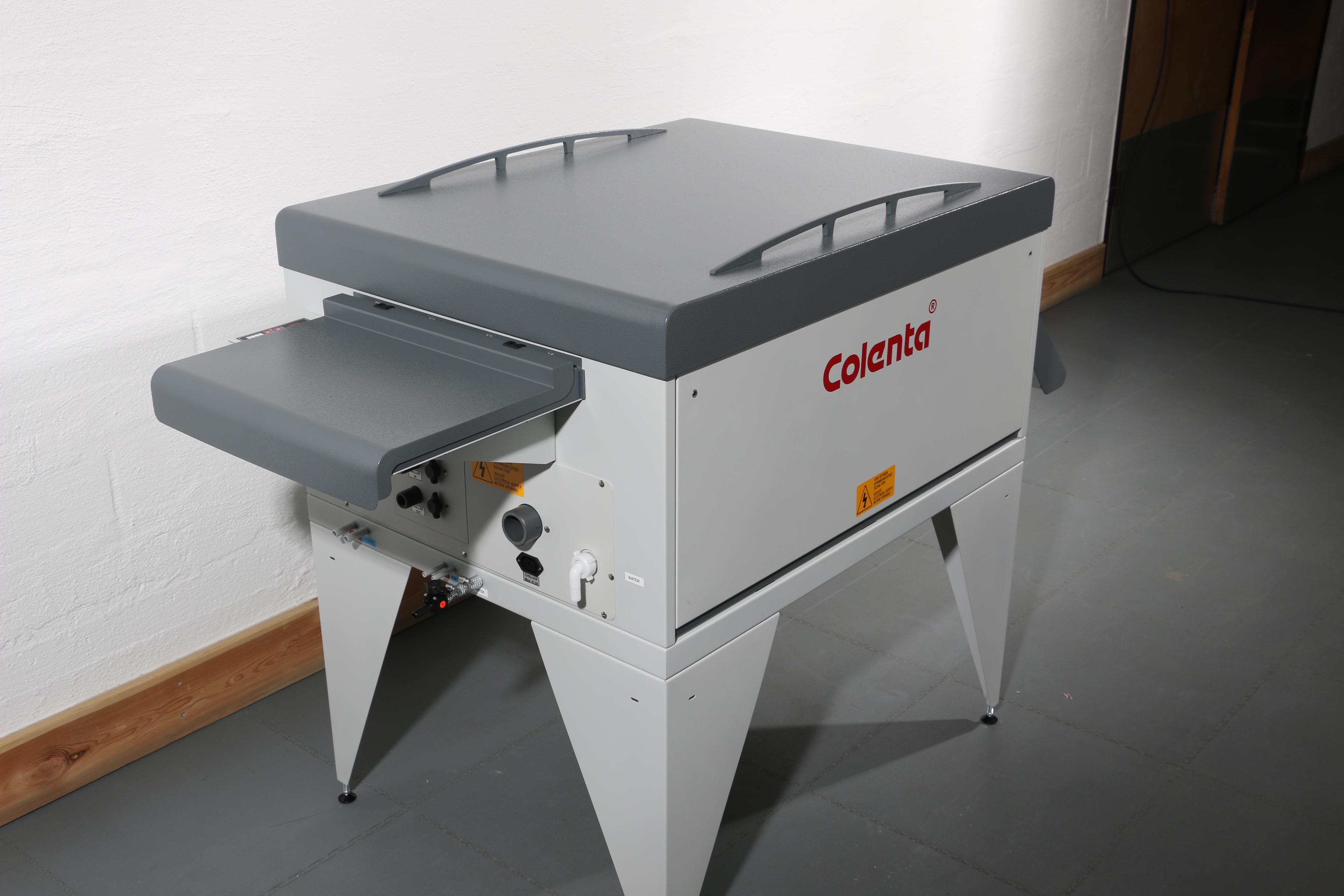

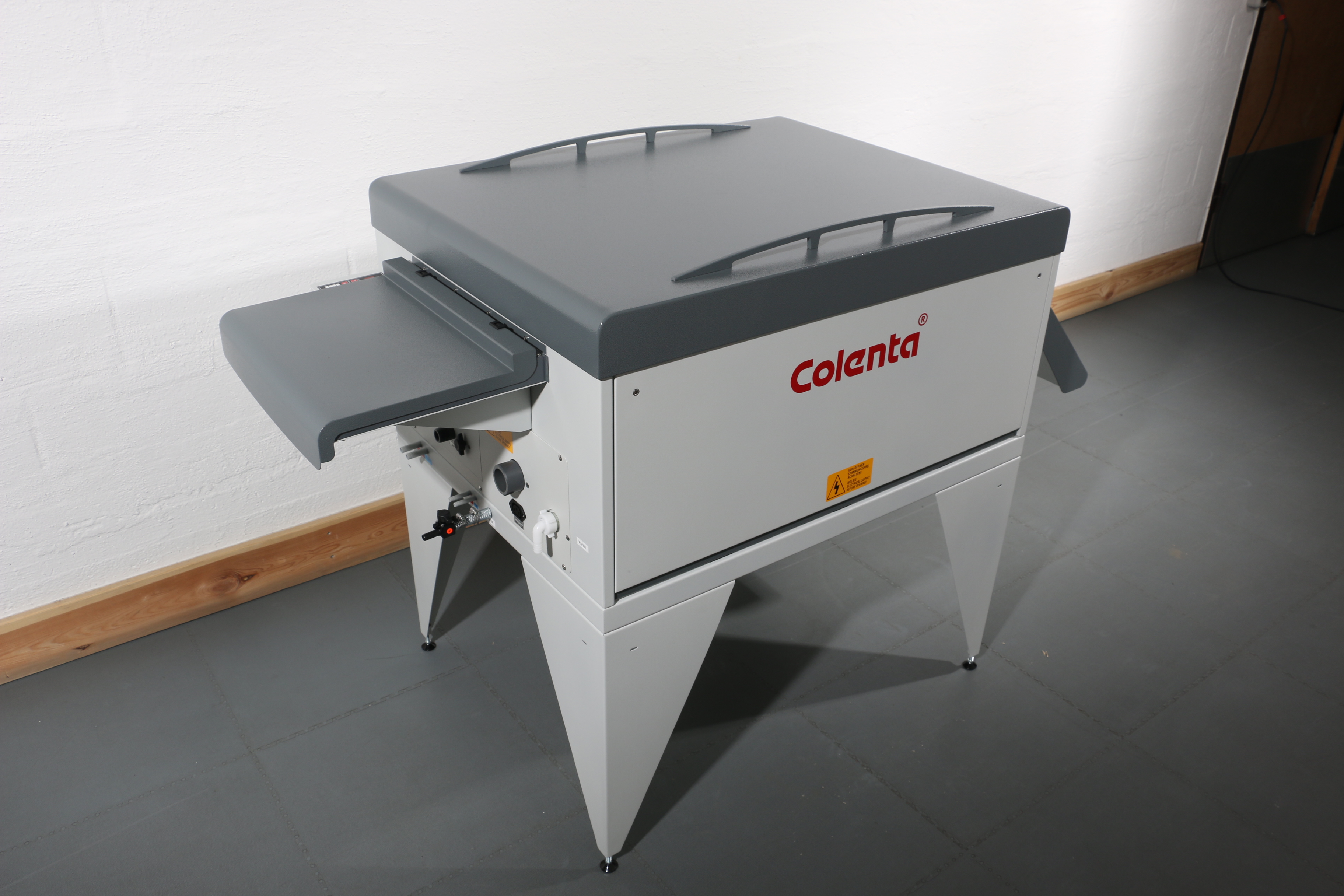

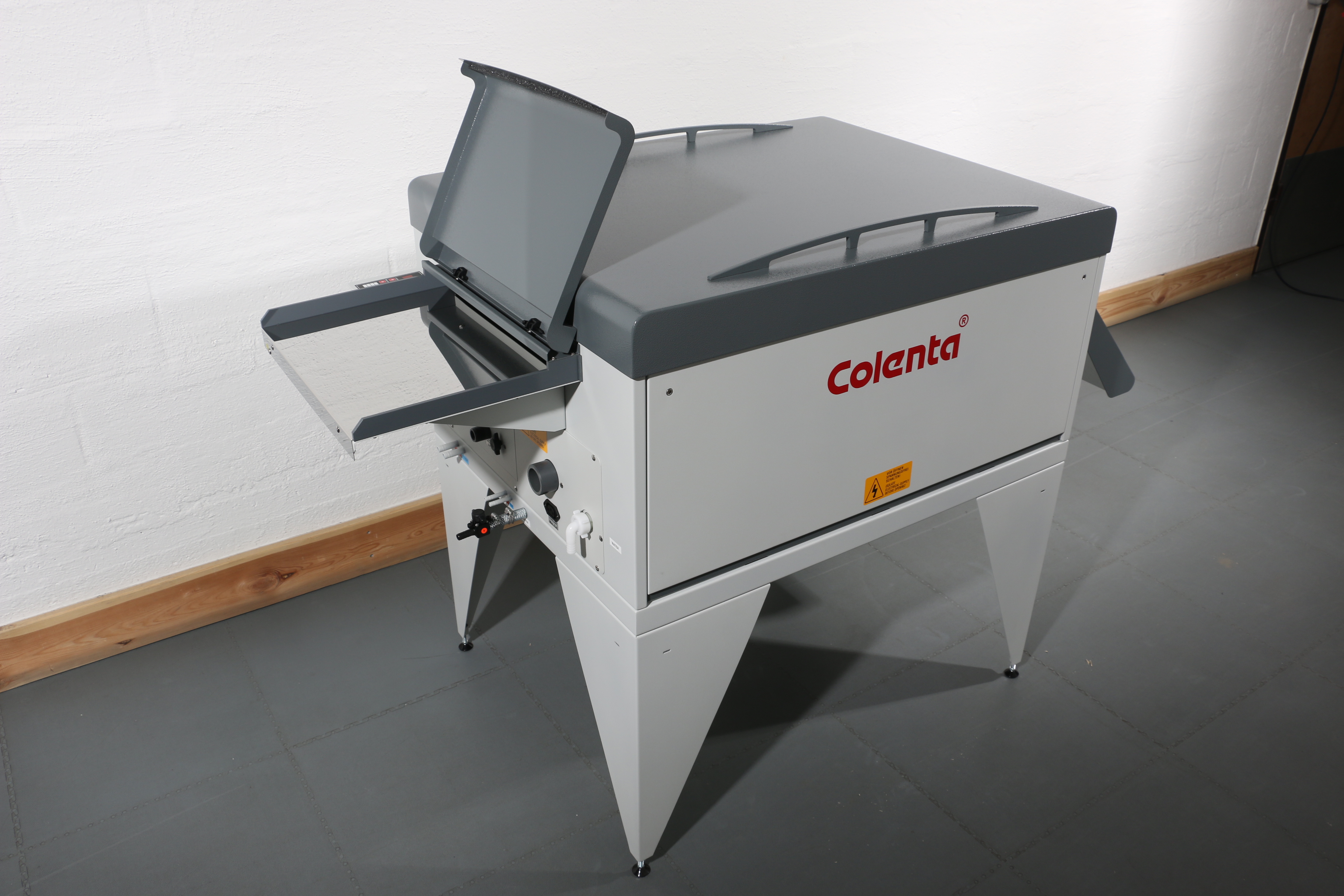

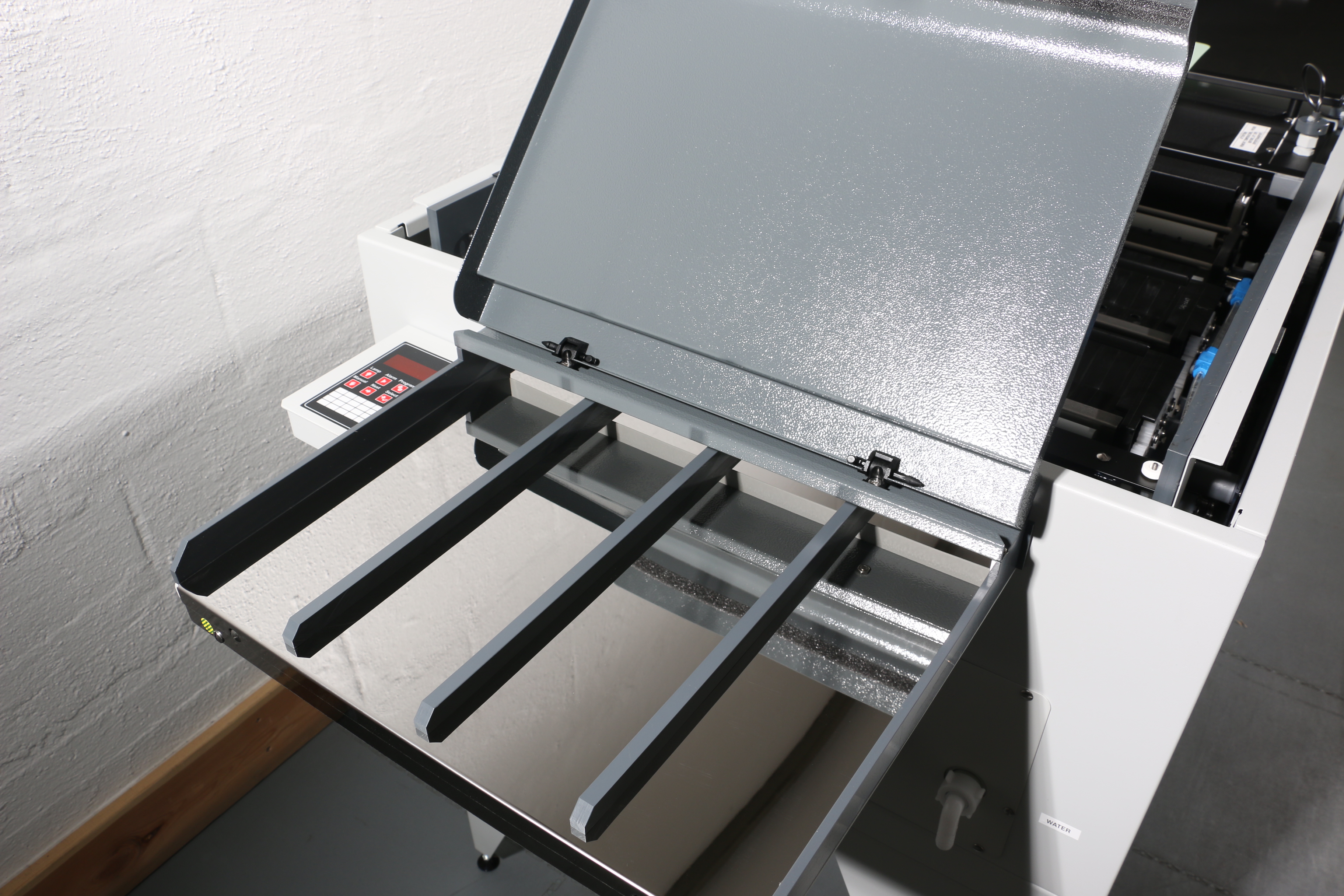

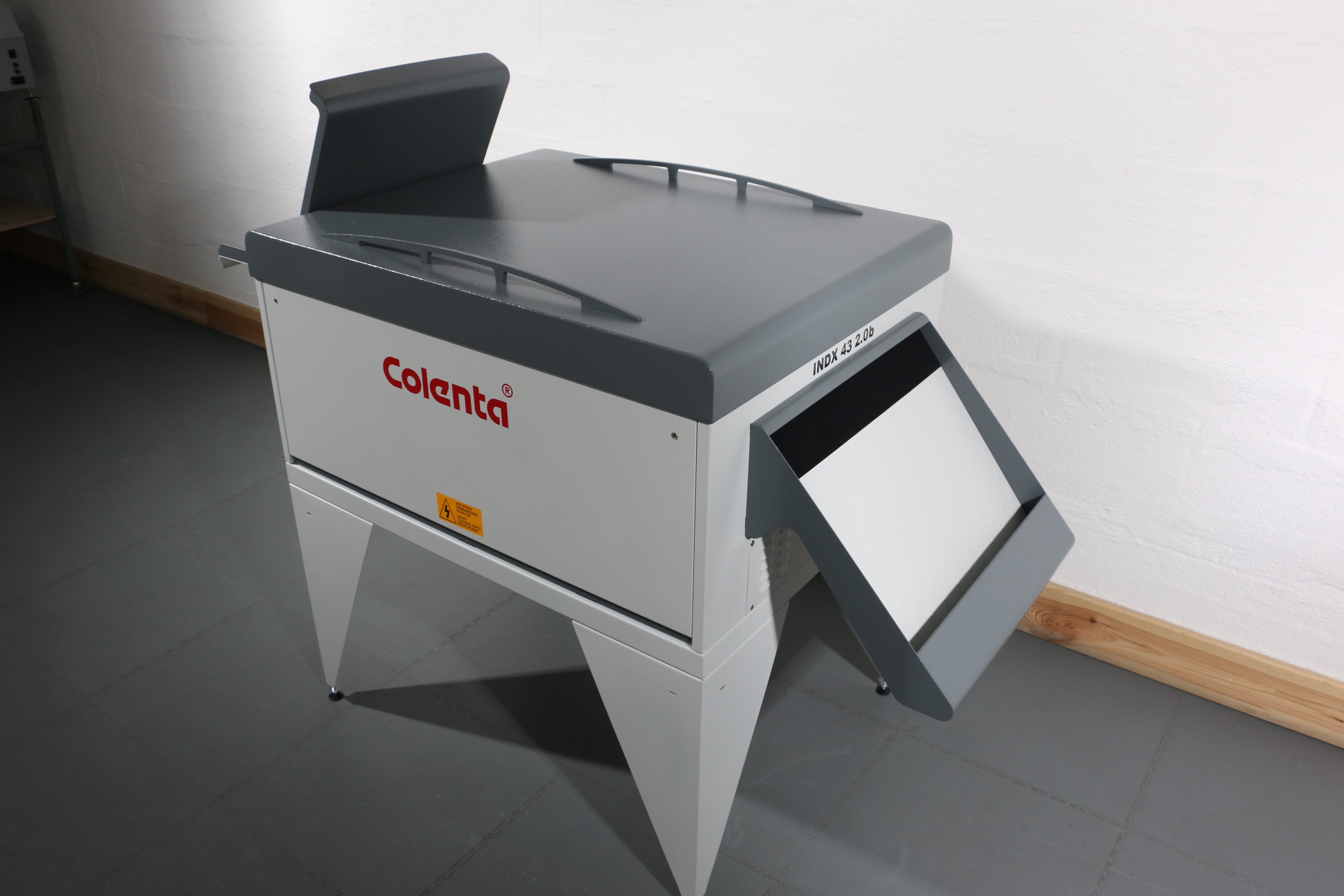

The Colenta INDX 43 2-0b is a fully automatic medium range film processor designed for free standing or “through wall” darkroom loading incorporating a warm air, flat path dryer with an inbuilt internal air flow / exhaust to ensure efficient drying and good operating conditions. It provides a maximum feed width of 43cm for sheet and roll film and easily adapted to the preference of a table position or onto an open stand.

Main features of Colenta INDX 43 2-0b

Compact / robust design – ease of operation

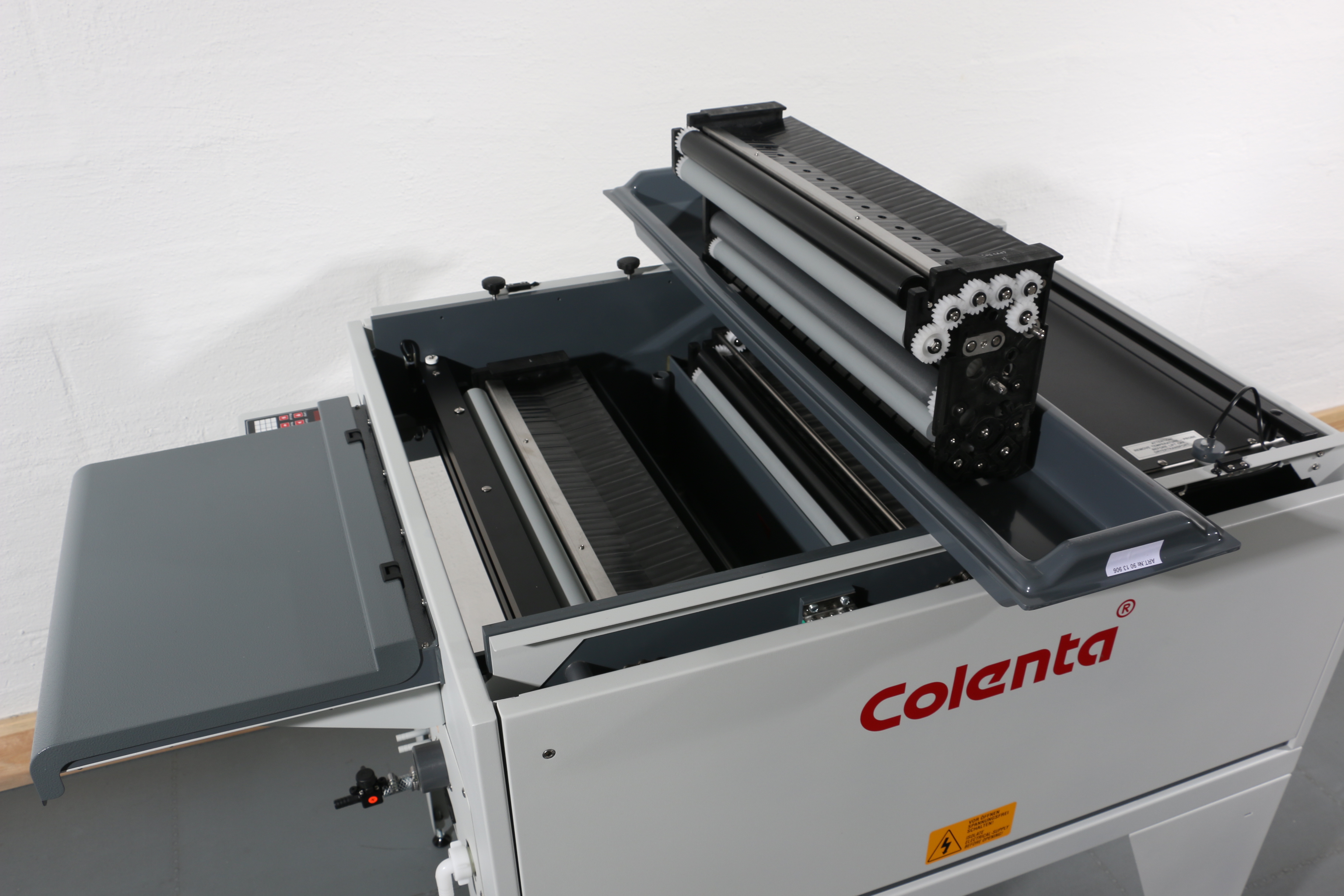

Intermediate rinse rack bath system

*Automatic film-in detection (pulsed IR sensor bar)

*Automatic replenishment system for DEV. & FIX

*Automatic heating / cooling for DEV. and FIX

Auto antioxidation / auto anticrystalization cycles

Inbuilt filtration system for DEV.

Separate drain for DEV., FIX and WASH

CE declaration according EN

…..*microprocessor controlled & reprogrammable

Standard 230V 50/60Hz 16A power supply

Specifications:

Processing applications	All types of industrial x-ray films
Film thickness	0.10mm – 0.18mm
Material width	Minimum 7.5cm – Maximum 43cm
Material length	Minimum 12cm



Time in Developer	Minimum 25 seconds	Maximum 170 seconds
Intake Speed	95cm/minute	14cm/minute
Cycle Time – dry to dry	97 seconds	659 seconds



Tank Capacity

Developer	7 Litres
Fixer	6.5 Litres
Wash water	6.5 Litres



Solution heating (Fix and Dev)	Adjustable in a range of 18°C – 43°C (separate inline 350W heaters)
Dryer	Warm Air Adjustable in a range of 18°C – 55°C



Replenishment	Fully automatic Replenishment is microprocessor controlled and calculated from information received from sensors measuring the width and length of material entering the processor. Replenishment cycles are variable
Wash Water Distribution	Built-in 2 way magnetic valve
Wash Water Flow Rate	2.5 Litre/minute when film is processed
Wash Water Supply Pressure	3-10 Bar
Wash Water Supply	Filtered at temperature of 8°C – 15°C with ¾” hose connection
Wash Water Drain	32mm 5/4” hose or tube



Weight:

Empty             150Kg

Filled              170Kg

 Request a free quote today for a Colenta INDX 43 2-0b



Additional information

Manufacturer	BALTEAU NDT
