Product information:

The Baltograph TSD450-0 is introducing the series of the highest powerful tubes manufactured by BALTEAU. This tube doesn’t offer a compromise to power neither to flexibility but is designed for heavy walled and highly absorbing applications mainly. Two independent filaments are giving the possibility to perform inspections up to 4,5 kW on the large filament.

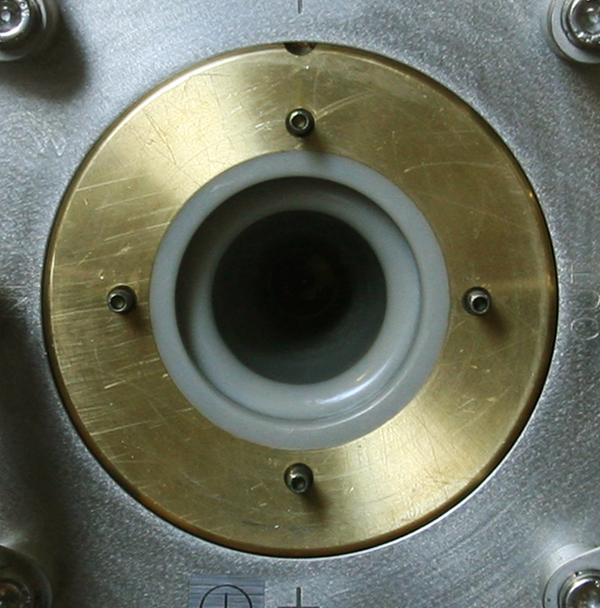

Thanks to its beryllium window this tube also delivers soft X-rays for light materials or improved radiographic techniques. The tube shielding is internal and reduces the radiation leakage to less than 1R/h @ 1m as required by International standards. In and out fluid inlets are mounted with universal connectors while the two HV plug cones are R28.

This tube can be used with all brands of generators provided that the load curve can be adapted. See our specialists if you intend to connect this tube to another unit than a BALTEAU

Specifications of TSD450-0:

Max. High Voltage:	450Kv
Tube Type:	Metal-Ceramic
Beam Angle:	40°
Cooling Mode:	Oil
HV Connector:	R28
Nominal Power:	900/4500W
Inherent Filtration:	5Be
Target Angle:	30°
Leakage:	10mSv/h @ 1m
Cooling Flow Rate:	14 l/min
Weight:	95Kg



Small Focal

Max. Current @ kV Max.	2mA
Focal spot EN12543	2.5d
Max. Current	10mA



Large Focal

Max. Current @ kV Max.	10mA
Focal spot EN12543	5.5d
Max. Current	24mA
