Baltograph TSD160-3

Baltograph TSD160-3 quantity

Add to cart

Add to quote

Product added to quote

View/Send Quote Request

Description

Product information:

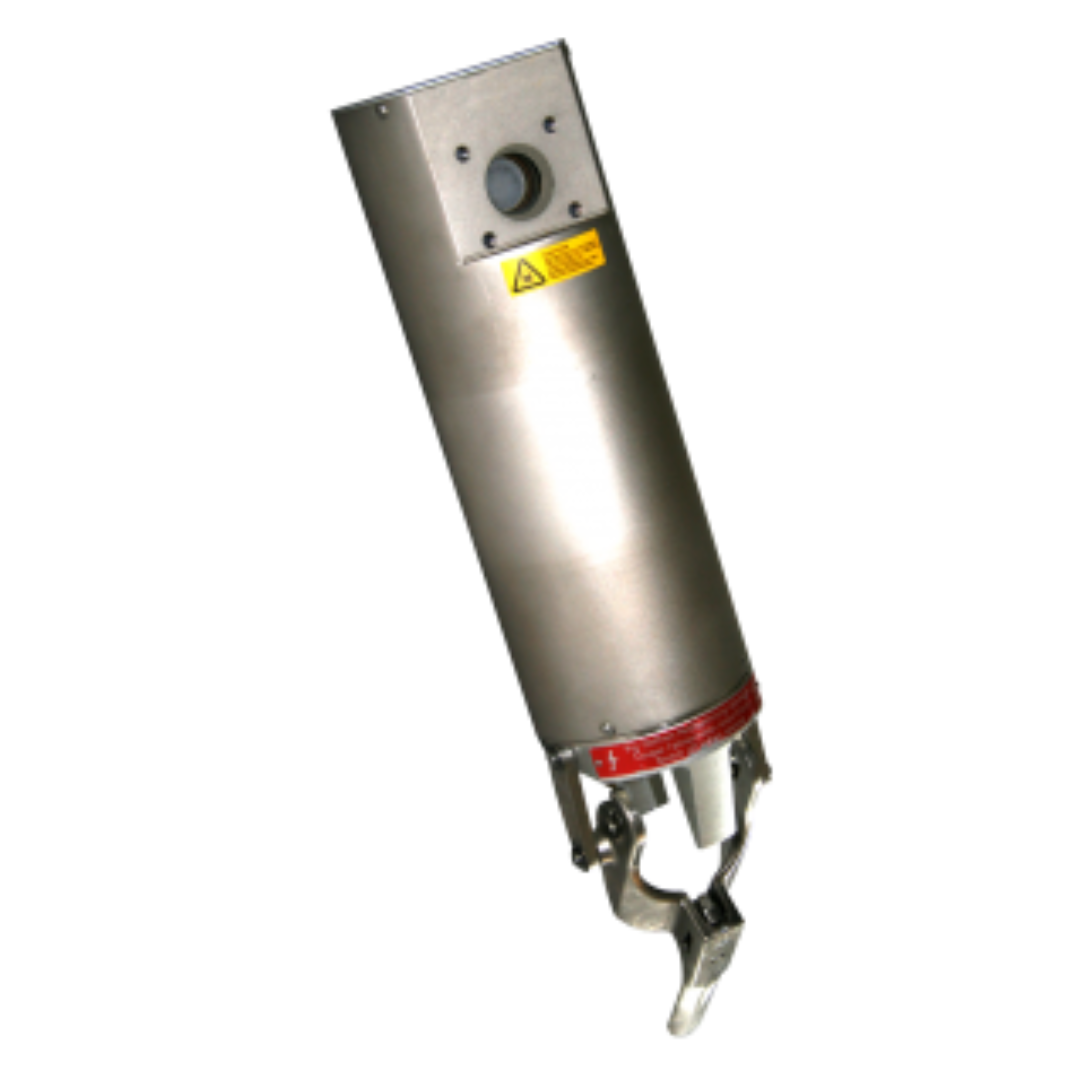

The TSD160-3 is a Monopolar tube designed for radioscopy installations or for applications where working cycle is extremely important. Indeed, the tube is mounted with two identical small size filaments adapted to the radiography or radioscopy of light alloys, composites or small steel thicknesses.

One filament can be considered as a spare of the other one and due to the fact that sizes are identical, can replace a broken filament without the need of re-qualification of the technique or a change in the parameters.

The outside diameter of the housing is barely 100 mm which will ensure that the tube can be inserted even in tiny spaces. The tube shielding is internal and reduces the radiation leakage to less than 1 R/h @ 1 m as required by International standards. In and out fluid inlets are mounted with universal connectors while the HV plug cone is a R24.

This tube can be used with all brands of generators provided that the load curve can be adapted. See our specialists if you intend to connect this tube to another unit than a BALTEAU.

Specifications of TSD160-3:

Max. High Voltage:	160Kv
Tube Type:	Metal-Ceramic
Beam Angle:	40°
Cooling Mode:	Water
HV Connector:	R24
Nominal Power:	640/640W
Inherent Filtration:	0.8Be
Target Angle:	20°
Leakage:	2.5mSv/h @ 1m
Cooling Flow Rate:	4 l/min
Weight:	8Kg



Small Focal

Max. Current @ kV Max.	4mA
Focal spot EN12543	1d
Max. Current	15mA



Large Focal

Max. Current @ kV Max.	4mA
Focal spot EN12543	1d
Max. Current	15mA



Request a free quote today for TSD160-3.
