TCN799 Tungsten Collimator
Out of stock
Description
Product information
TCN799 Tungsten Collimator
Collimators contain and direct the beam of radiation during a radiography exposure. This results in improved radiograph quality and safer operating conditions. Tungsten directional collimators (of which the TCN 799 is one) direct the radiation beam from a side port as a 60° conical side throw, when connected to a source guide tube.

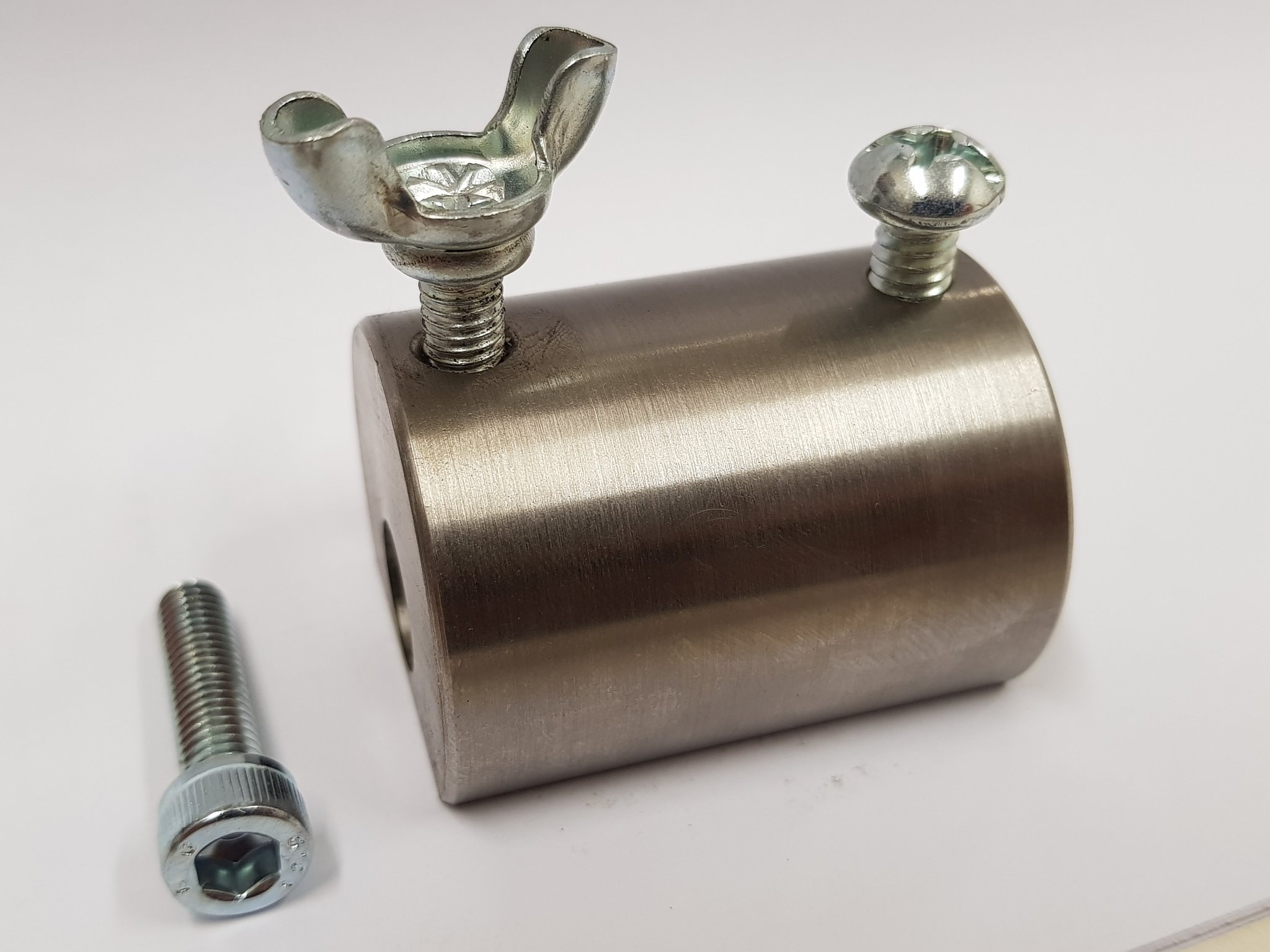

Can be attached directly to an intermediate guide tube. It is held in position by means of a knurled thumb screw.
Specifications:
| Weight: | 0.8Kg |
| Dimensions: | Length 1.88in (47.75mm) Diameter 1.5in (38.1mm) |
| Attenuation: | C0-60 = 0.46, Ir-192 = 0.05, Se-75 = 17.5 |
| Half value layers: | Co-60 = 1.12, Ir-19 = 4.30, Se-75 = 17.5 |
| Beam size: | 60° conical side throw |
Request a free quote today for a TCN799 Tungsten Collimator.
Questions? Ask our specialist team for NDT help or advice
