Product information:

The DC1 control unit is derived from the CF2000 control unit and offers the majority of the same features but for controlling the BALTOSPOT Portable Constant potential series.

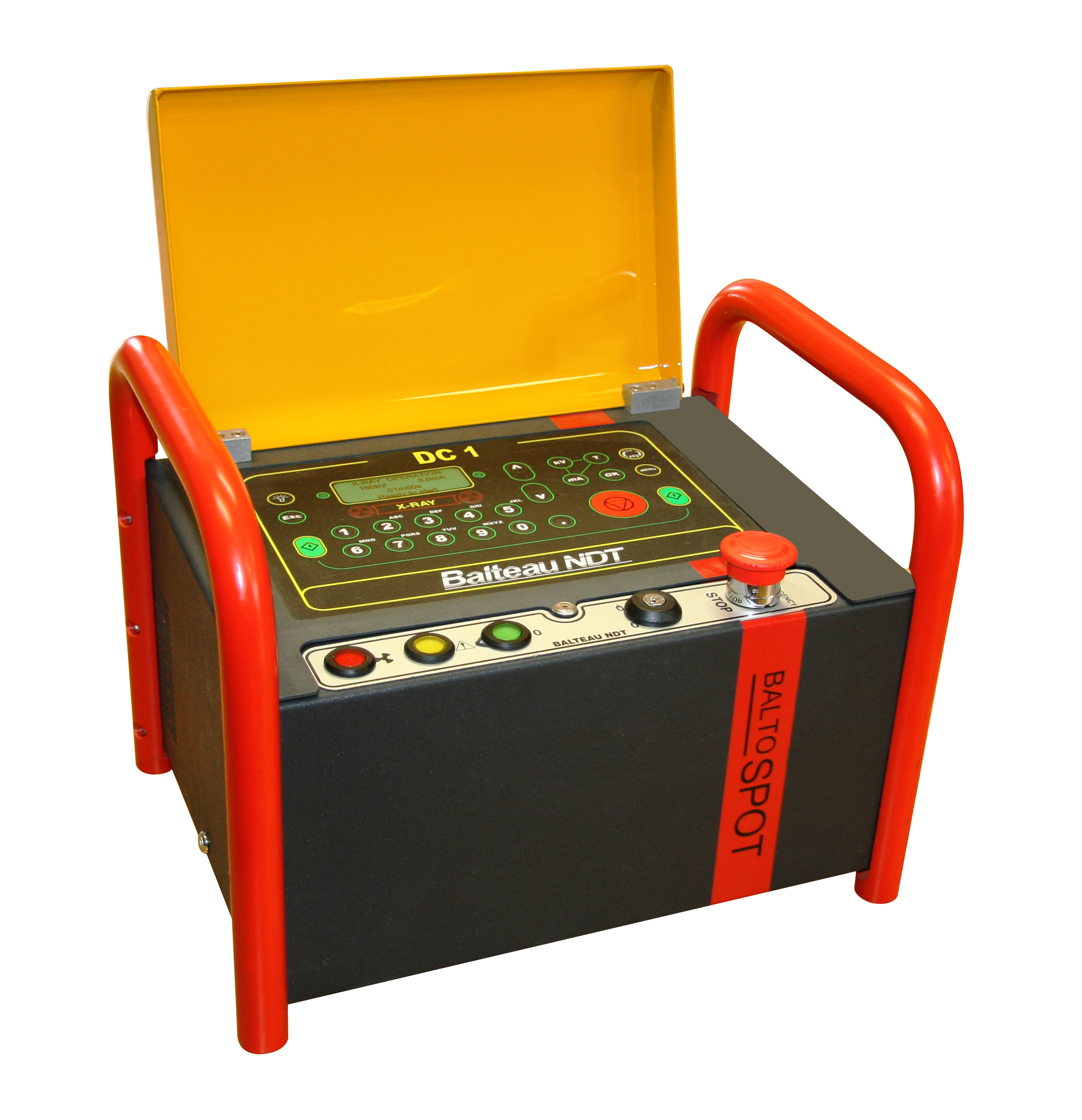

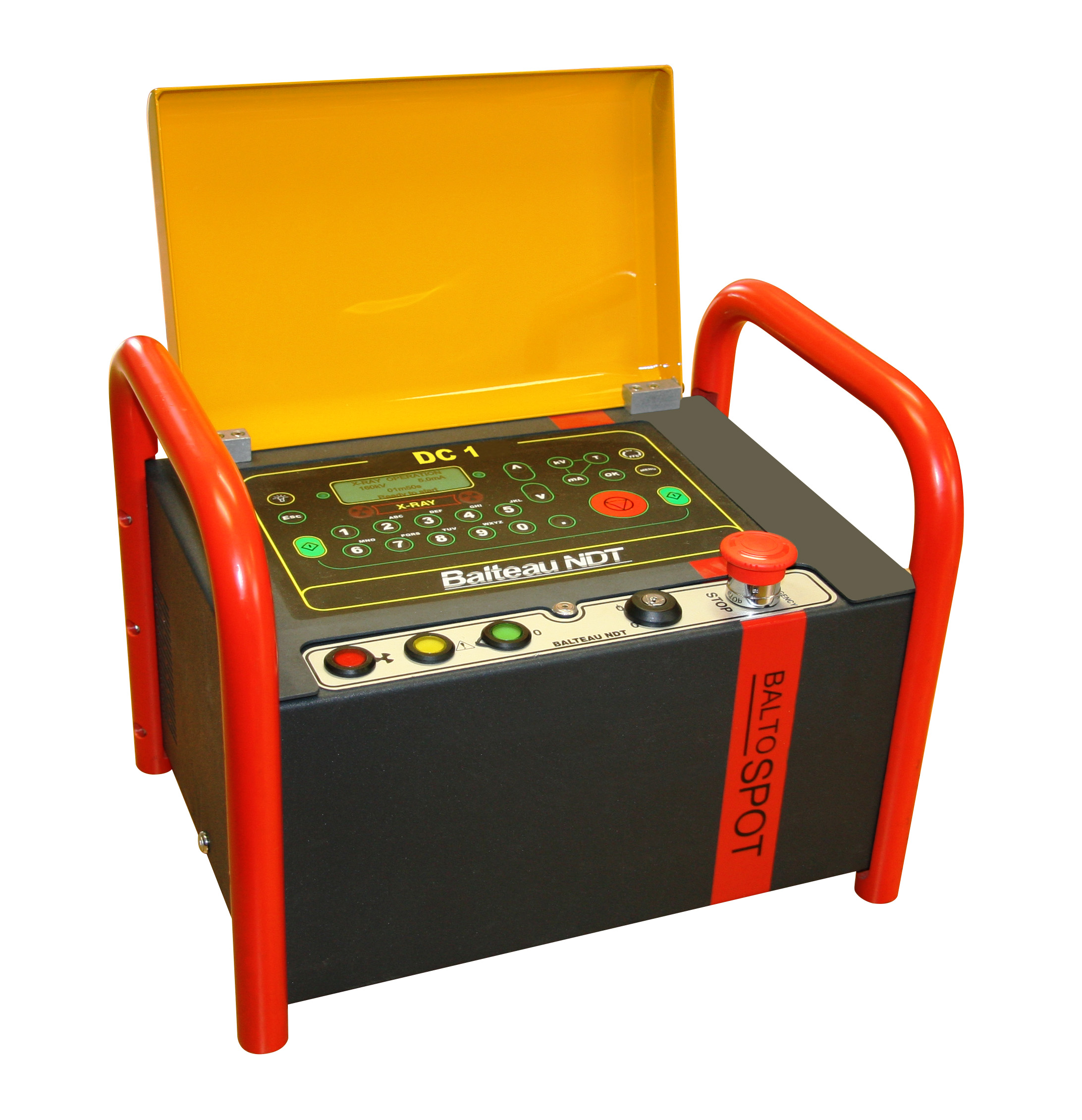

The unit can be distinguished from others by its two red handles and its slightly smaller size.

Because power availability on sites is not that often easy to obtain, the DC1 unit uses the minimum power possible. It also adapts to the different power supplies or variations without influencing the dose output or your image quality.

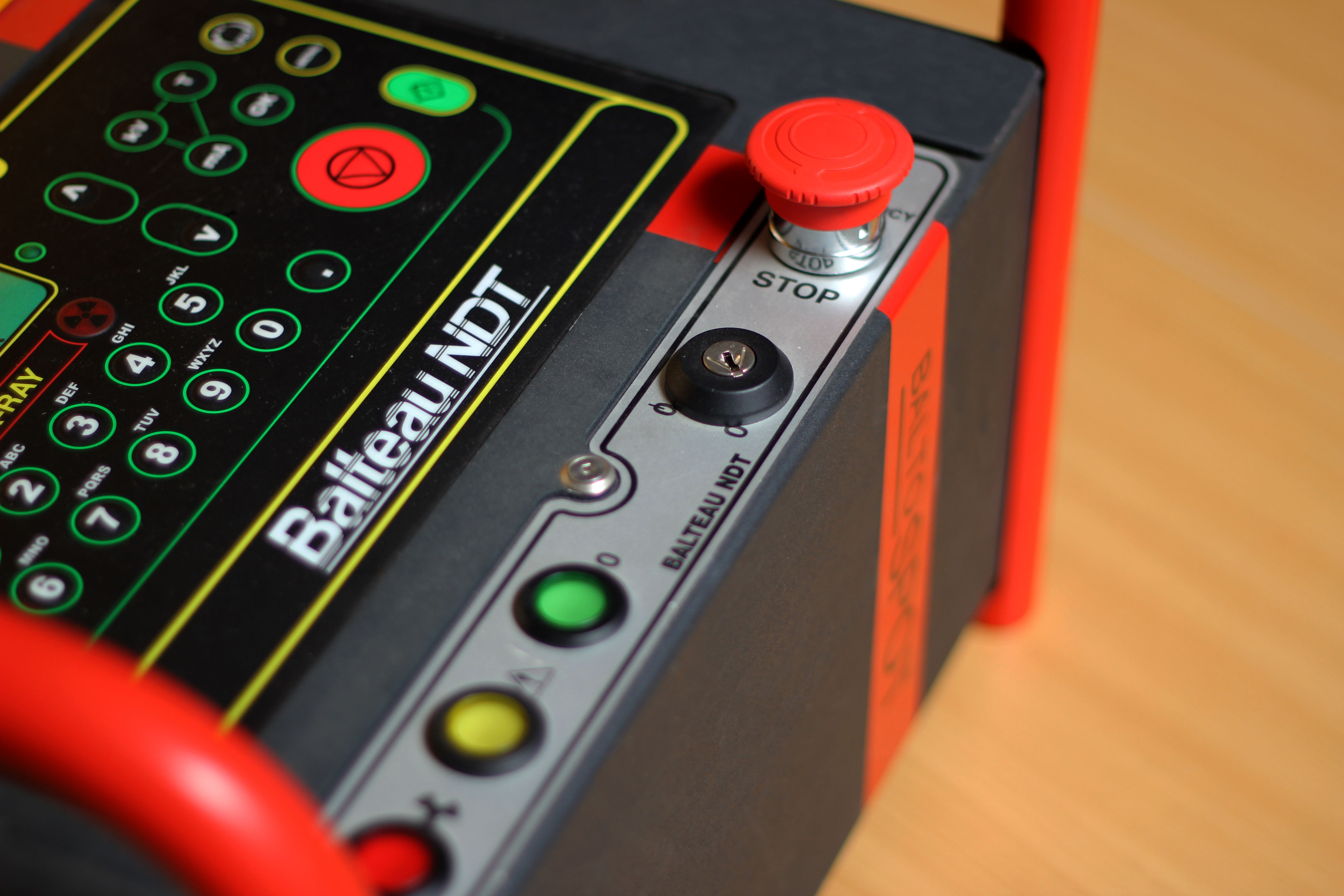

Safety features include the waterproof ergonomic keypad and the large robust handles attached on the side are making it ideal for on-site jobs as well as desktop uses. The 4 lines backlit clear display is giving at all time the necessary indications to the users about the status of operations. A convenient bright yellow cover is also protecting the unit when not in use.

Main features of DC1:

• Drives the constant potential generators
• Automatic recognition system
• Automatic preheating
• Controlled by microprocessor
• Works with up to 1000W generators
• Parameters and last exposures held into memory
• Several languages available
• User friendly

Key Advantages of DC1:

• Compact & robust industrial design
• Designed for a harsh environment
• Stable and constant output even with bad power supply
• Low power requirement
• Easy transport: robust casing
• Ergonomic keypad and numpad
• 4 lines display: clear indications
• Safety oriented: X-ray start with 2 buttons
• Lightweight cables
• CANON mil. Metallic connectors

Mains Supply AC:	170 to 260V
Frequency (Hz):	45 to 66Hz
Duty Cycle:	100%
Operating Temperature (°C):	-10 to +50
Connectors:	Metallic military type. Independent earth screw
Casing:	Aluminium, rough construction with protective handles and metallic cover
kV min step:	1kV
mA min step:	0.1mA
Time min step(s):	1 up to 99 mins 59 seconds
Weight:	9.2Kg
Keypad:	24 keys embossed surface, anti scratch long life surface treatment
Automatic preheating:	Yes (90 sec. minimum)
Memories:	100 last exposure, 100 memories
Display:	4 lines, crystal clear, green back lighting, adjustable contrast
Warning Lights and safety device:	3 steps X-ray ON key, lockable emergency stop switch (CE)
	3 positions key switch, Buzzer, Alphanumeric messages and LED



Product available to UK and Ireland only
