Product information:

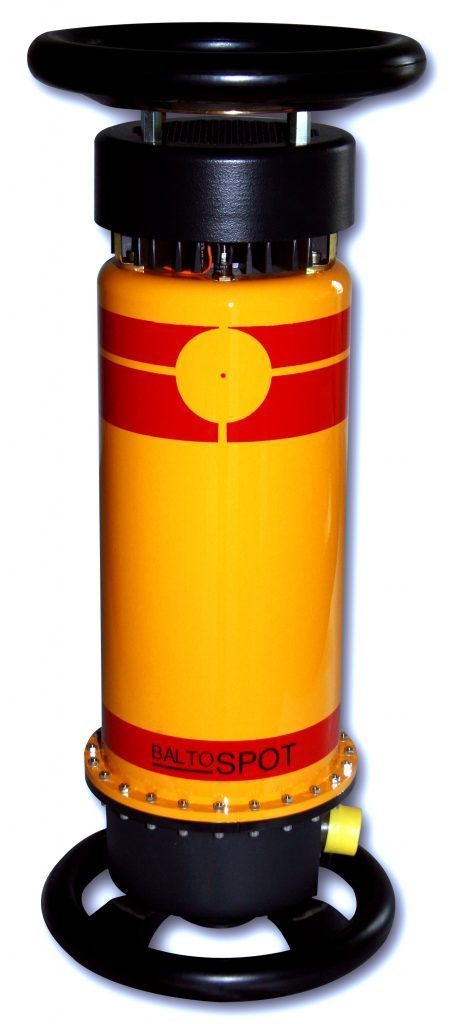

The Baltospot GFC205 is a panoramic portable unit derived from Balteau NDT’s well-known Crawler series but designed to be operated on field without mechanical carriage.

This unit has then naturally inherited the reliability of the crawler technology of Balteau NDT. The Baltospot GFC205 can deliver up to 200kV and 5mA and can be classified in the range of middle power units available at Balteau NDT. It will easily surpass the poor contrast of Isotopes and will be a very interesting replacement in medium thickness ranges where Isotopes are generally not performing well.

In combination with a GFD (Directional) or a CERAM, the Baltospot GFC205 will allow you to perform all kind of exposures with a limited number of units.

Main features of Baltospot GFC205:

• High frequency
• Air cooled
• Unique energy recovery module
• Rugged and light control unit
• Safety first, x-ray start with 2 buttons
• Full automatic preheating
• Cables with reduced size and weight
• Panoramic beam
• Factory set beam homogeneity
• Serial link through RS232

High Voltage Range:	70 to 200kV
Tube Current Range:	1.5 to 5mA
Maximum Anode Power Dissipation:	1000Watt
Beam Angle:	360°×40°
Focal Spot Size (IEC336):	Ø5×1.2mm
Steel Penetration at Max (*):	29mm
Max. Recommended Temp:	50°C
Temperature Switch:	70°C
Inherent Filtration (mm):	9.1mm (Al)
Anode Cooling Type:	Air
Duty Cycle:	100%
Mains:	180-260V
Weight: (without rings)	25.5Kg
Tubehead:	Glass
Control Unit:	CF2000 or Hand-X

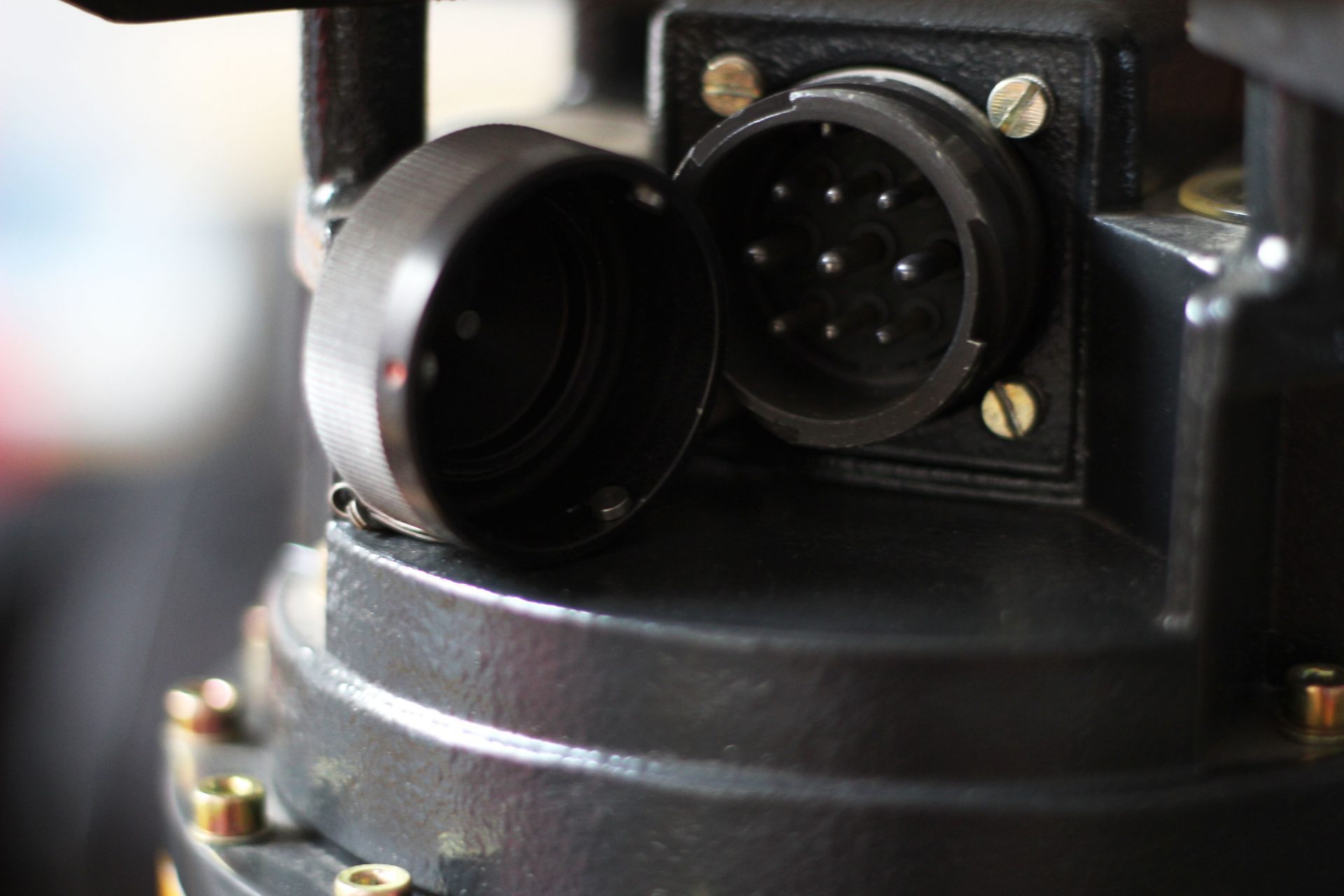

Canon mil. Metallic connector

Key Advantages of Baltospot GFC205:

• High stability output dose
• Lightweight
• Can be delivered with our 900g Hand-X including a Geiger-Müller detector
• Low power consumption
• Unmatched safety
• Very reliable
• Long term stable density
• Ergonomic guard rings
• CANON mil. metallic connectors



Most Common Applications:

• Oil & Gas
• Shipyard building & Building sites
• Petrochemical & Power plants
• Tanks, reservoirs & pressure vessels
• Inspection companies & training centres
• Conventional films or CR applications



Product available to UK and Ireland only
