Baltospot Ceram235

Baltospot Ceram235 cantidad

Añadir al carrito

Add to quote

Product added to quote

View/Send Quote Request

Descripción

Product information:

When you need a unit that can perform standard thicknesses inspections as well as occasionally heavy walled ones, the Baltospot CERAM235 is the perfect compromise.

Offering a maximum of 235 kV and 5 mA, the Baltospot CERAM235 combines all technological advantages of its big brother in the CERAM series and gives the flexibility of a unit smaller in size.

No compromises have been made to component selection or cooling, the unit is able to run on a 100% duty cycle thanks to its purposely designed tubehead and driving electronics.

This unit has to be combined to one of the two available type of control units (CF2000 or Hand X), with very lightweight new generation of cables.

Main features of Baltospot Ceram235:

• Pulsed wave technology
• Ceramic tube insert

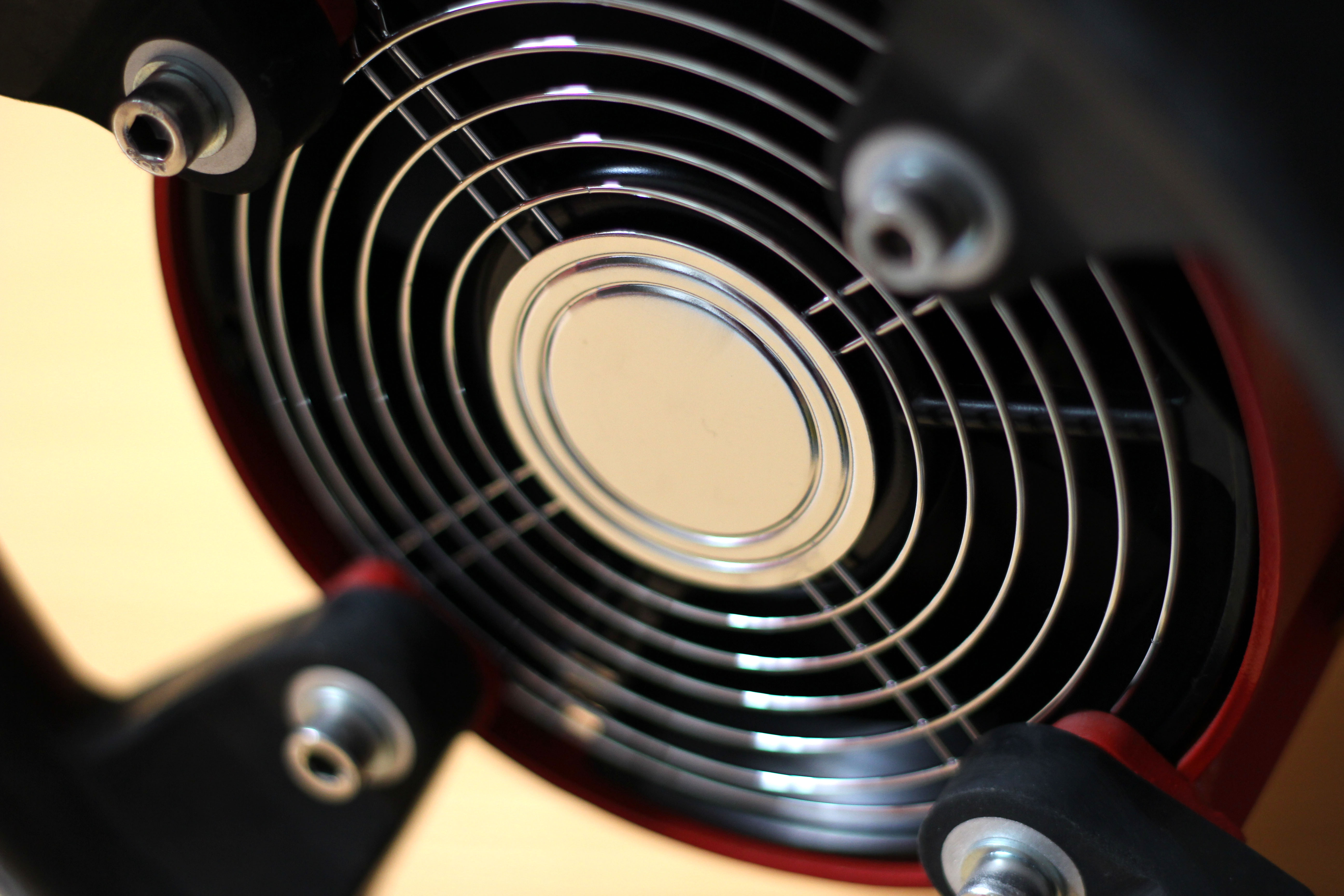

• Air cooled
• Unique energy recovery module
• Rugged and light control unit
• Safety first, x-ray start with 2 buttons
• Full automatic preheating
• Works on power generator
• Very stable output
• Low consumption



High Voltage Range:	70 to 235kV
Tube Current Range:	0.1 to 5mA
Maximum Anode Power Dissipation:	1175Watt
Beam Angle:	40°
Focal Spot Size (IEC336):	2×2mm
Steel Penetration at Max (*):	43mm
Max. Recommended Temp:	50°C
Temperature Switch:	70°C
Inherent Filtration (mm):	1mm(Be)
Anode Cooling Type:	Air
Duty Cycle:	100%
Mains:	180-260V
Weight: (without rings)	27Kg
Tubehead:	Ceramic
Control Unit:	CF2000 or Hand-X



Ceramic Tubehead

Key Advantages:

• Very reliable
• Ergonomic guard rings
• Temperature pressure switch
• Full automatic preheating process
• Low power requirement
• Cables with reduced size and weight
• Can be delivered with our 900g Hand-X including a Geiger-Müller detector
• CANON mil. metallic connectors
• Steadiness & Sturdinesss



Most Common Applications:

• Oil & Gas
• Shipyard building & Building sites
• Petrochemical & Power plants
• Foundries
• Railway parts
• Boiler or pressure vessels manufacturers



Baltospot Ceram235 available to UK and Ireland only
