Hand-XD Control Unit

كمية Hand-XD Control Unit

إضافة إلى السلة

Add to quote

Product added to quote

View/Send Quote Request

الوصف

Product information:

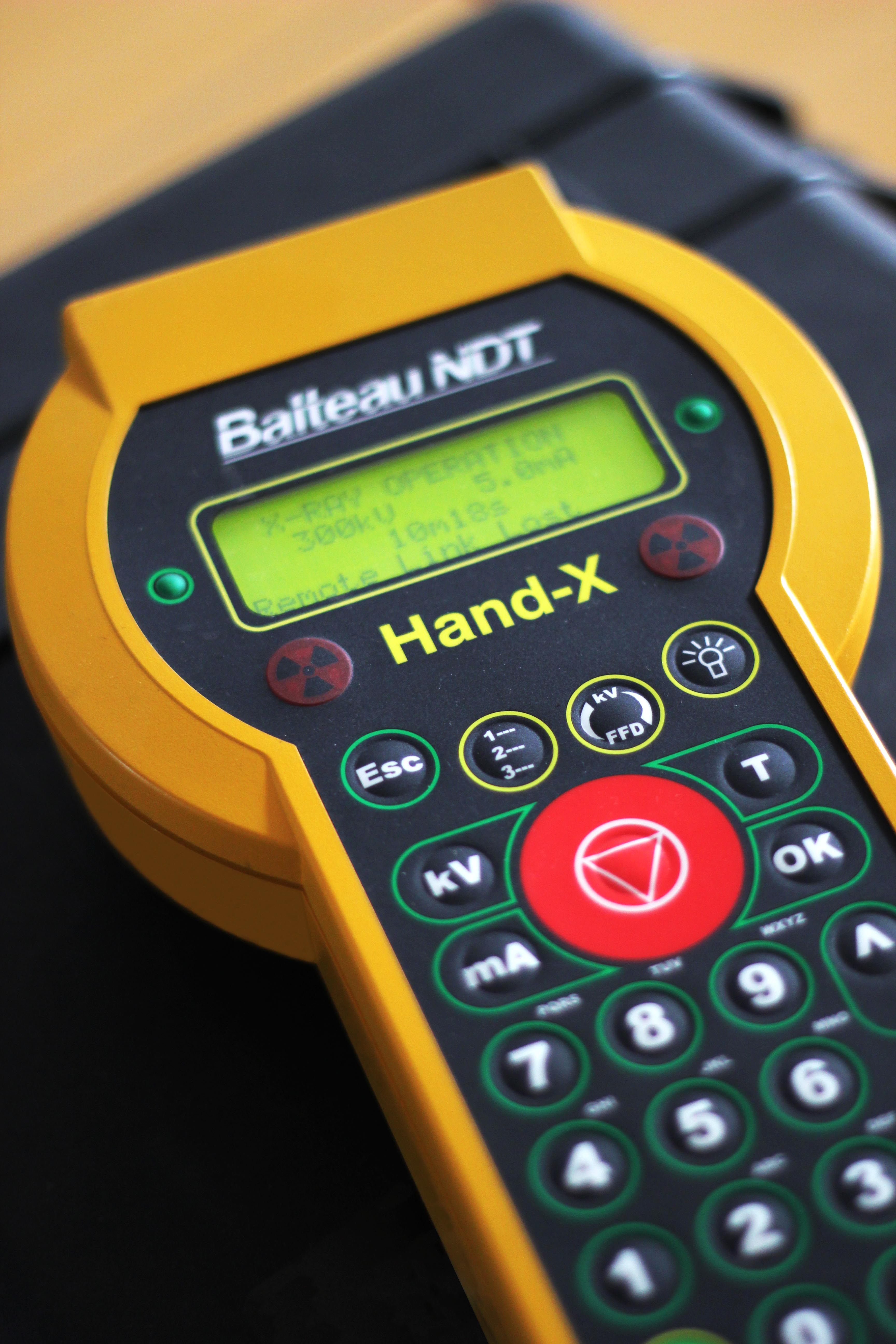

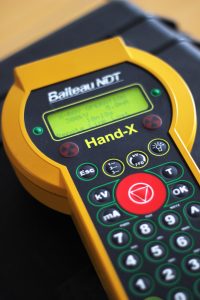

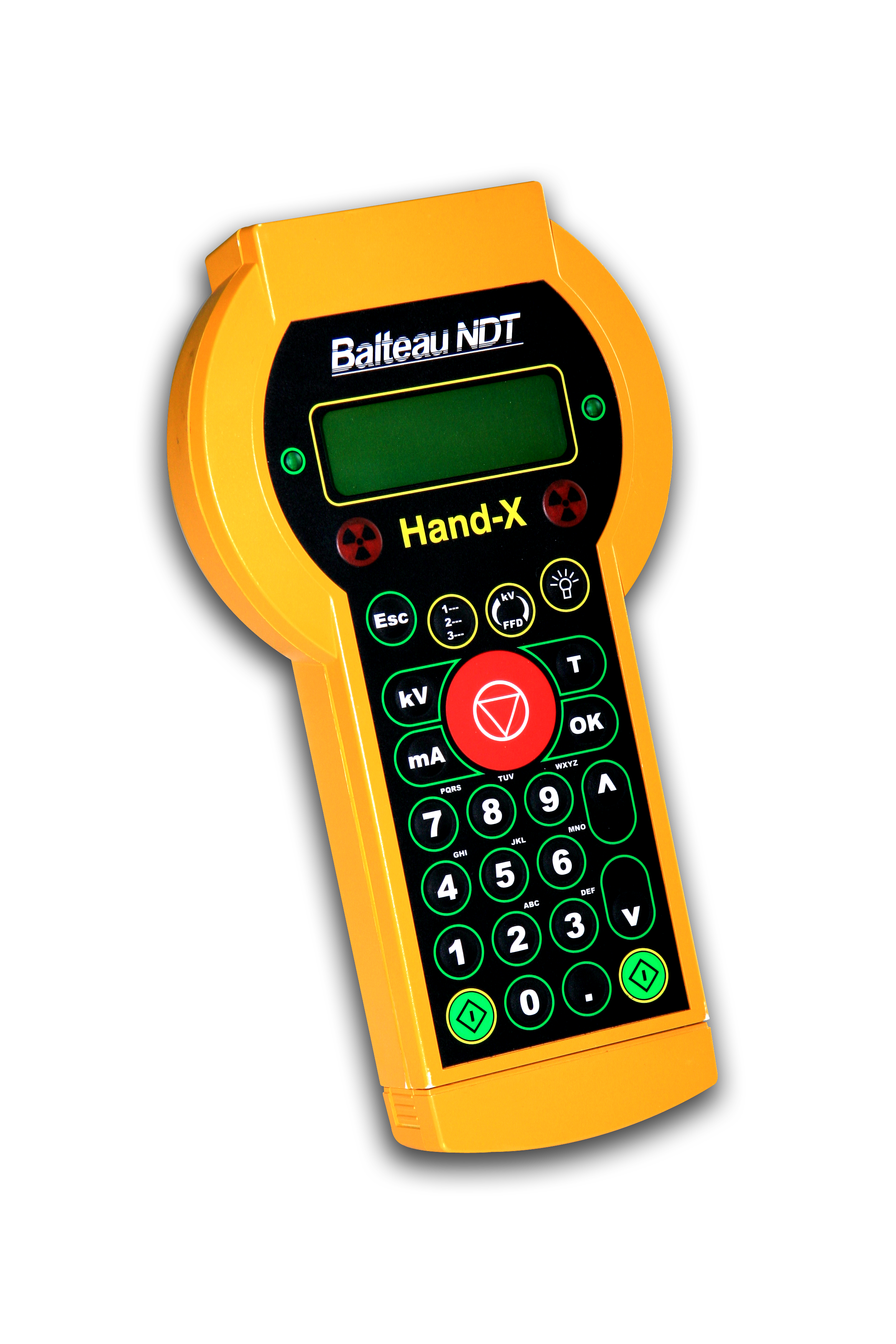

The Hand-XD® is a revolutionary wireless remote control which can operate a generator remotely from up to 100m in open fields.

The Hand-XD offers the majority of the same features but for controlling the Baltospot Portable Constant potential series.

The purpose of this is certainly to gain freedom of moves in cluttered environment like shipyards of places where cables are at risk or never long enough because of mandatory twists and turns around existing infrastructures.

Having the control at your fingertips at all time including exposure is also of great advantage in terms of security as you can interrupt exposure at anytime if your surveyed area is not cleared anymore. The built in Dosimeter is ending the safety-oriented features of the unit by providing the operator a reliable and convenient measuring device of exposure at the very place where he or she stands.

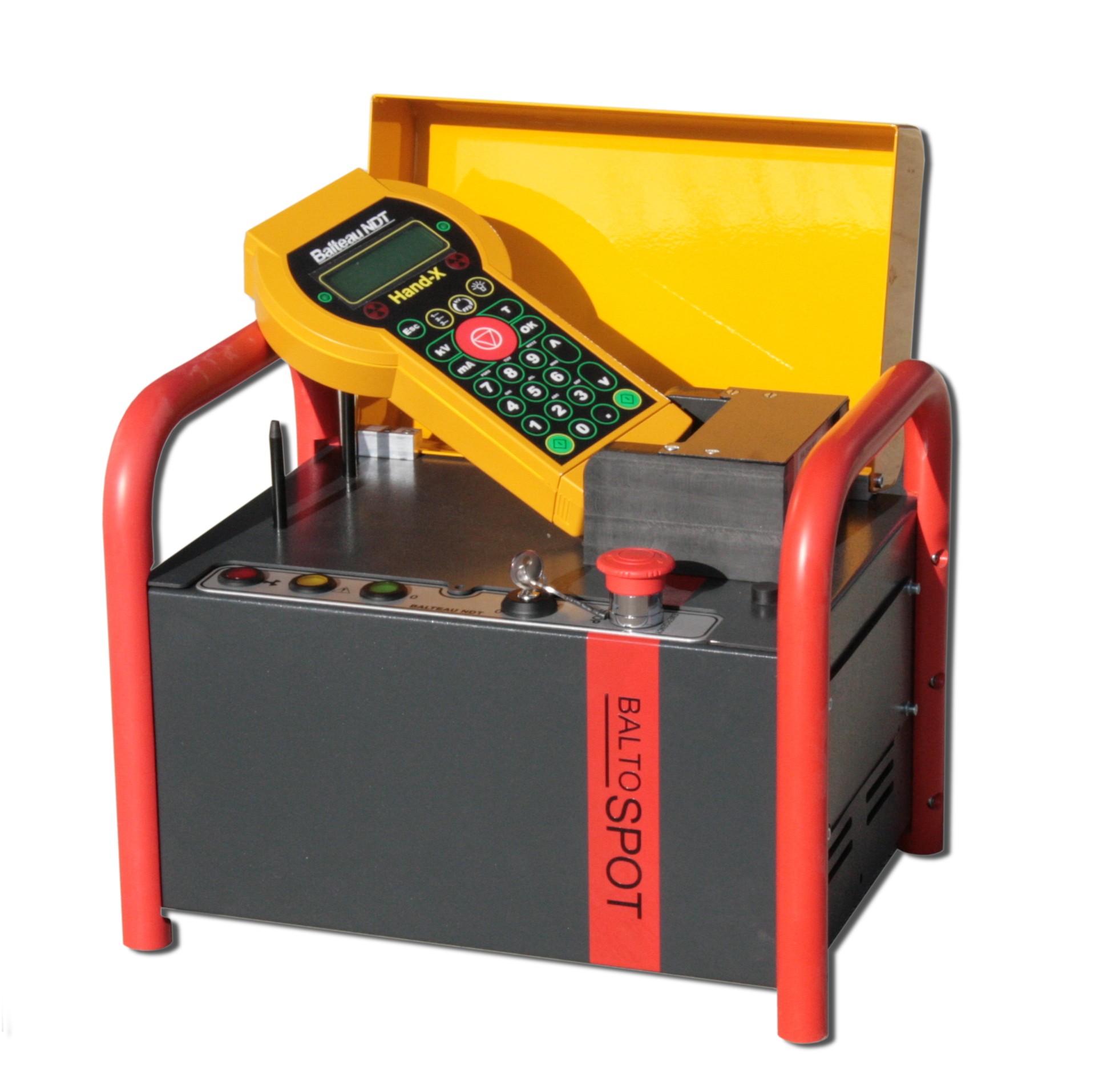

The Hand-XD Power connected to the generator has specifically been designed to cope with harsh environment and bad power supplies.



Mechanical drawing of Hand-XD:



Mains Supply AC:	170 to 260V
Frequency (Hz):	45 to 66Hz
Duty Cycle:	100%
Operating Temperature (°C):	-10 to +50
Inherent Filtration (mm):	1Be
kV min step:	1kV
mA min step:	0.1mA
Time min step(s):	1 up to 99 mins 59 seconds
Weight:	9.5Kg
Weight remote control:	0.9Kg
Display:	4 lines, green back lighting
Battery:	8 hours



Key Advantages of Hand-XD:

• 900g wireless remote control
• Integrated GM detector
• RS232 (option)
• Can be used in direct mode
• Compact & robust industrial design
• Designed for a harsh environment
• Stable and constant output even with bad power supply
• Low power requirement
• Easy transport: robust casing
• Ergonomic keypad and numpad
• 4 lines display: clear indications
• Safety oriented: X-ray start with 2 buttons
• CANON mil. Metallic connectors
• CE certified
• NFC74-100 LCIE certified



Specification	Units	Hand-XD
Mains Supply AC	V	170-260
Frequency (Hz)	Hz	45 to 66
Duty Cycle	%	100
Operating Temperature	°C	-10 to +50
Connectors		Metallic military type. Independent earth screw
Casing		Aluminium, rough construction with protective handles and metallic cover
kV min step	kV	1
mA min step	mA	0.1
Time min step	s	1 up to 99 min 99 sec
Keypad		24 keys embossed surface, anti-scratch long life surface treatment
Automatic preheating		Yes (90 sec minimum)
Memories		100 last exposure, 100 memories
Display		4 lines, crystal clear, green back lighting, adjustable contrast
Warning lights and safety device		3 steps X-ray ON key, lockable emergency stop switch (CE)
		3 positions key switch, buzzer, alphanumeric messages and LED
Battery		Internal accumulator (2.5A) – 8 hours charge capacity
Weight		9.5Kg + 0.9Kg (remote control)





Product available to UK and Ireland only

معلومات إضافية

Manufacturer	BALTEAU NDT
