Baltospot GFD165

كمية Baltospot GFD165

إضافة إلى السلة

Add to quote

Product added to quote

View/Send Quote Request

الوصف

Product information:

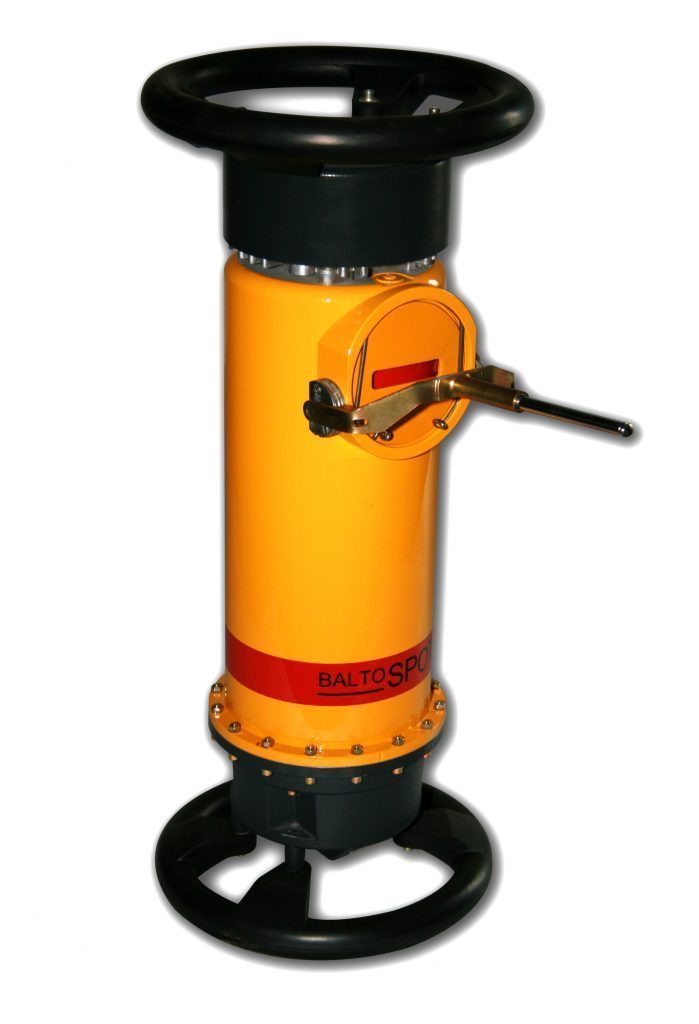

The popular Baltospot GFD165 is the smallest unit of the GF series to date. With a maximum of 160kV and 5mA, the GFD165 is a compact gas insulated unit designed for applications where size and weight matter.

The Baltospot GFD165 is the ideal machine for field applications where the unit needs to be frequently moved or inserted in tiny spaces. With regards to its 5mA and pulsed wave technology, the unit can penetrate medium to very thin materials, metallic or composites. It will easily surpass the poor contrast of Isotopes and will be a very good replacement in lower thickness ranges where Isotopes are generally not allowed.

The Baltospot GFD165 uses the same driving electronic and technologies as the CERAM but is equipped with the standard well proven glass tube of Balteau NDT.

Main features of Baltospot GFD165:

• High frequency
• Air cooled
• Very small & lightweight
• Unique energy recovery module
• Hand-X wireless remote operation availability
• Rugged and light control unit
• Safety first, x-ray start with 2 buttons
• Full automatic preheating
• Cables with reduced size and weight
• Works on power generator



High Voltage Range:	50 to 160kV
Tube Current Range:	1 to 5mA
Maximum Anode Power Dissipation:	800Watt
Beam Angle:	55°
Focal Spot Size (IEC336):	1.5×1.5mm
Steel Penetration at Max (*):	17mm
Max. Recommended Temp:	50°C
Temperature Switch:	70°C
Inherent Filtration (mm):	6mm (Al)
Anode Cooling Type:	Air
Duty Cycle:	100%
Mains:	180-260V
Weight: (without rings)	12Kg
Tubehead:	Glass
Control Unit:	CF2000 or Hand-X

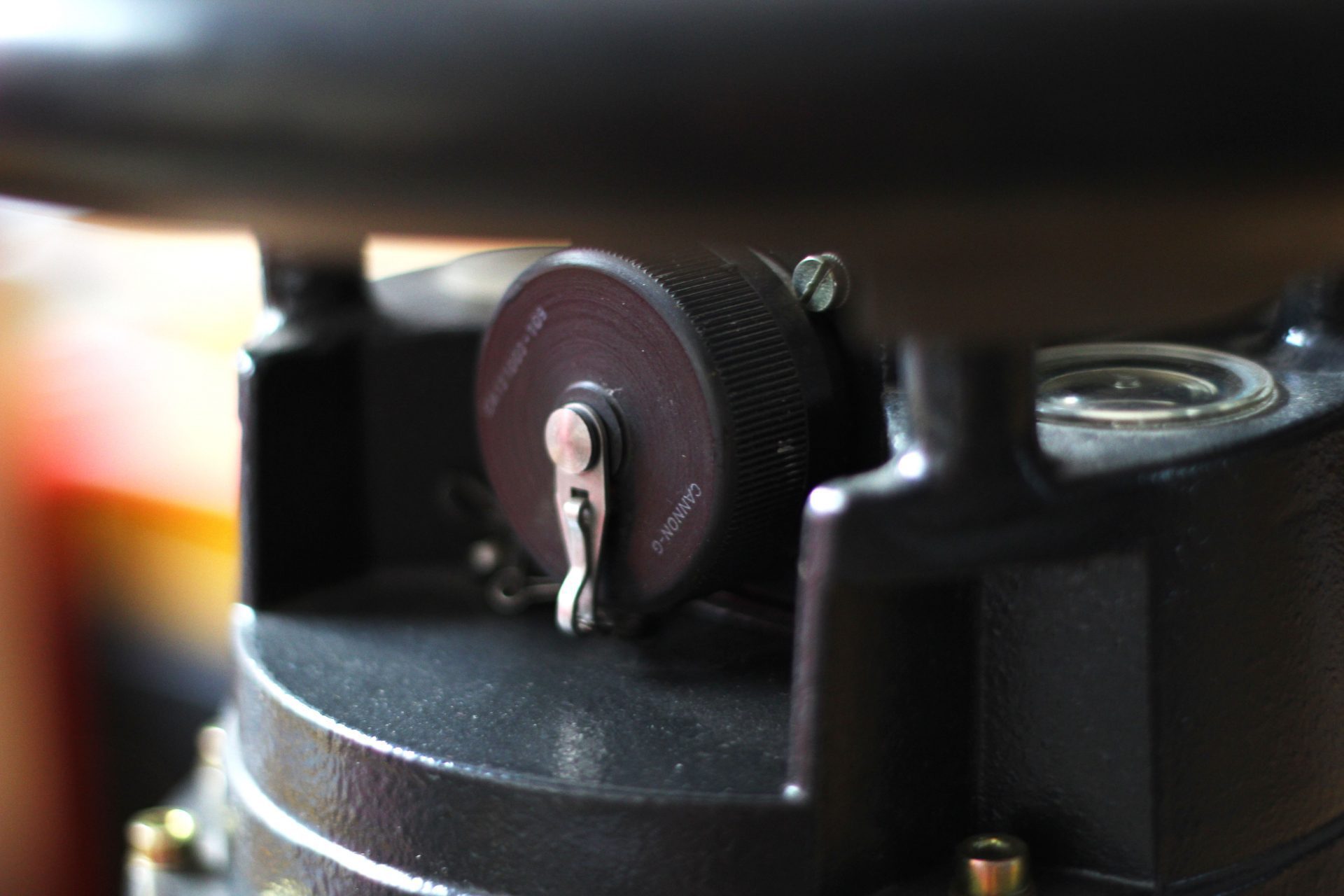

Canon mil. Metallic connector

Key Advantages of Baltospot GFD165:

• High stability output dose
• Lightweight
• Can be delivered with our 900g Hand-X including a Geiger-Müller detector
• Low power consumption
• Unmatched safety
• Very reliable
• Long term stable density
• Ergonomic guard rings CANON mil. metallic connectors

Most Common Applications:

• Oil & Gas
• Shipyard building & Building sites
• Petrochemical & Power plants
• Tanks, reservoirs & pressure vessels
• Inspection companies & training centres
• Conventional films or CR applications



Product available to UK and Ireland only
