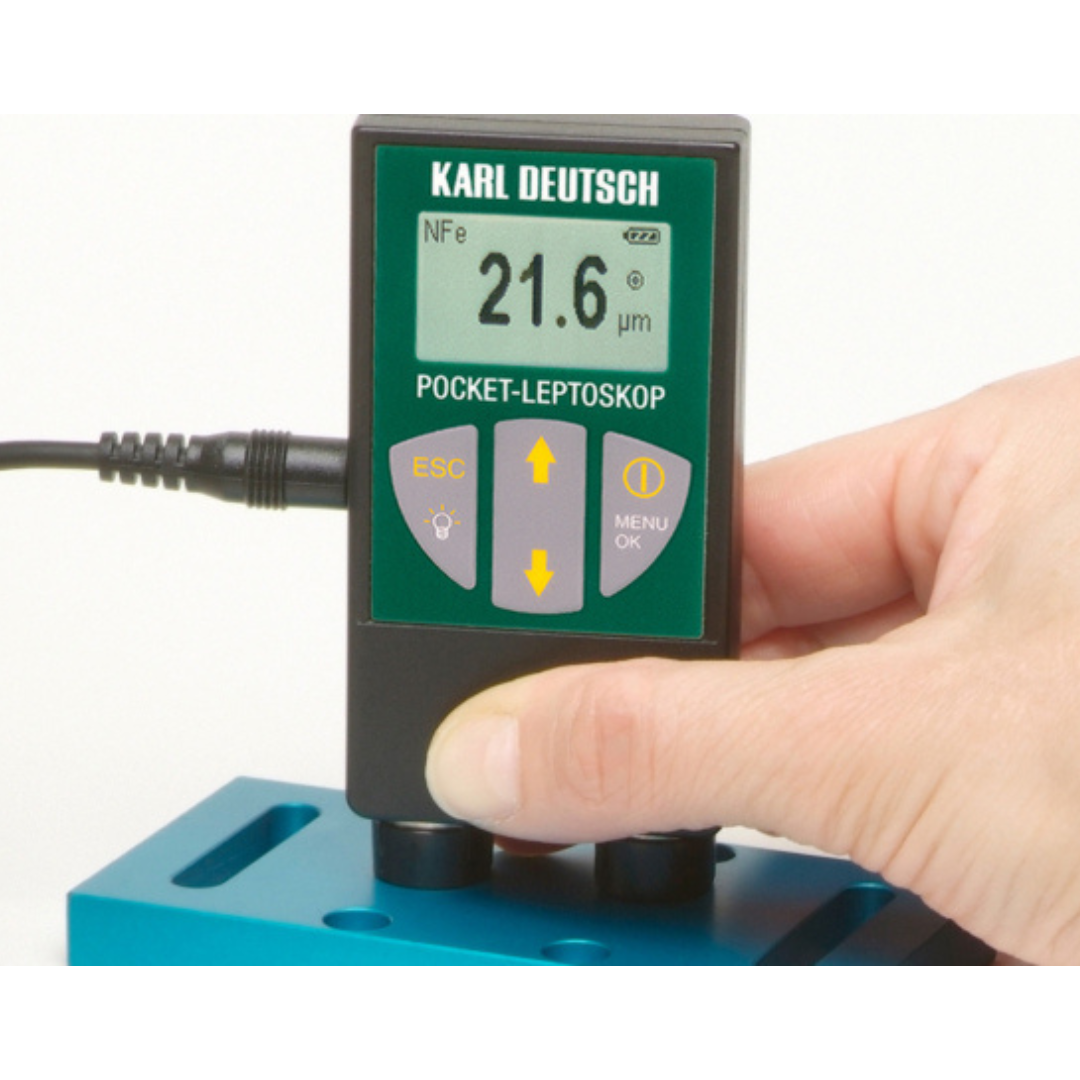

Pocket-LEPTOSKOP

Description

Product Description

The compact design and low price make the Pocket-LEPTOSKOP coating thickness gauge the perfect choice for determining the thickness of coatings on Fe and NFe substrates.

Key Advantages

• Large numbers for clearly recognisable readings
• The large display can be rotated with just one button click and allows you to easily read the measured value during overhead measurements
• Clear, understandable operating instructions via the display
• Convenient one-hand operation
• Integrated probe – for non-destructive determination of layer thicknesses of materials, including but not limited to, paint, lacquer, plastic, rubber, chrome, copper and zinc.

Product Versions

The Pocket-LEPTOSKOP is available in 3 versions:

Pocket LEPTOSCOPE 2018 (order no. 2018.001)
for thickness measurements of non-electrically conductive coatings on non-magnetic electrically conductive substrates (NFe, e.g. aluminum, copper, brass, bronze, austenite etc.) using the eddy current method (DIN EN ISO 2360).

Pocket-LEPTOSCOPE 2021 (order no. 2021.001)
for thickness measurements of non-magnetic coatings on magnetic substrate (Fe, e.g. iron, cast iron, steel, nickel, cobalt etc.) according to the magnetic-inductive principle (DIN EN ISO 2178).

Pocket-LEPTOSCOPE 2026 – Combination Probe (order no. 2026.001)
for NFe and Fe measurements. The type of substrate is detected automatically.
