MC460 Coil

Option

Choisir une optionMC460 MAGNETISING COIL - 230V AC onlyMC460 MAGNETISING COIL - 230V AC/DCEffacer

quantité de MC460 Coil

Ajouter au panier

Add to quote

Product added to quote

View/Send Quote Request

Description

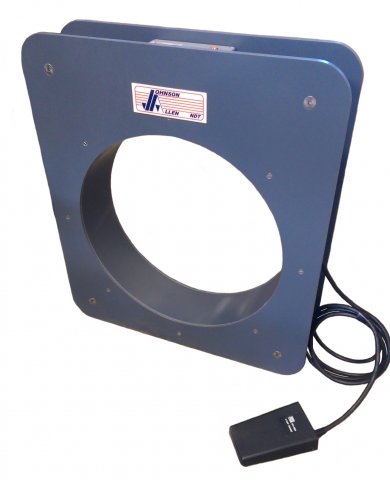

MC460 Coil Product information

The MC460 can be used as both a magnetising and demagnetising coil and is capable of finding transverse orientated defects. With sturdy PVC construction and the coils fully sealed this unit is suitable for use in even the harshest engineering environments.

The MC460 coil is fitted with a self-resetting thermal cut-out to prevent burnouts from misuse and the unit is supplied with an energising foot peddle for ease of use both as standard.

Main features:

Aperture	460mm
Voltage	230V
Current	18.5A
Frequency	50Hz
Modes	AC
Field Strength	>100 gauss @ centre
Duty Cycle	25%
Max ‘ON’ Time	30 Seconds
Weight	34Kg



Technical Information:

Suitable as both a magnetising and demagnetising coil.

Ideal for NDT processes requiring strong magnetic fields.

Large 460mm internal aperture make the MC460 suitable for most general engineering applications.

Requires a 230V supply – Operates at 50Hz.

The MC460 produces strong magnetic fields with >100 Gauss at the coil centre.

The MC460 coil has handles contained within in the corner of the unit and weighs 34Kg so can be easily be relocated to different work sites when required.

Maximum ‘On’ time of 30 seconds with a duty cycle of 25%.

The coil is sealed with the MC460 having a sturdy and robust PVC construction. Supplied with an energising foot peddle for ease of use as standard.

Fitted with a self-resetting thermal cut-out to prevent burnouts from misuse

All cables are heavy duty armoured type.

Suitable for use in even the harshest engineering environments.

 Request a free quote today.

Informations complémentaires

Manufacturer	Johnson and Allen
Option	MC460 MAGNETISING COIL – 230V AC only, MC460 MAGNETISING COIL – 230V AC/DC
