Colenta INDX 900E

Name: Colenta INDX 900E
SKU: F00.3000
Availability: InStock

UGS : F00.3000 Catégorie : Film Processors

Description

Product information

The Colenta INDX 900E X-ray film processor is an automatic processor especially designed for use in mobile or small darkrooms.

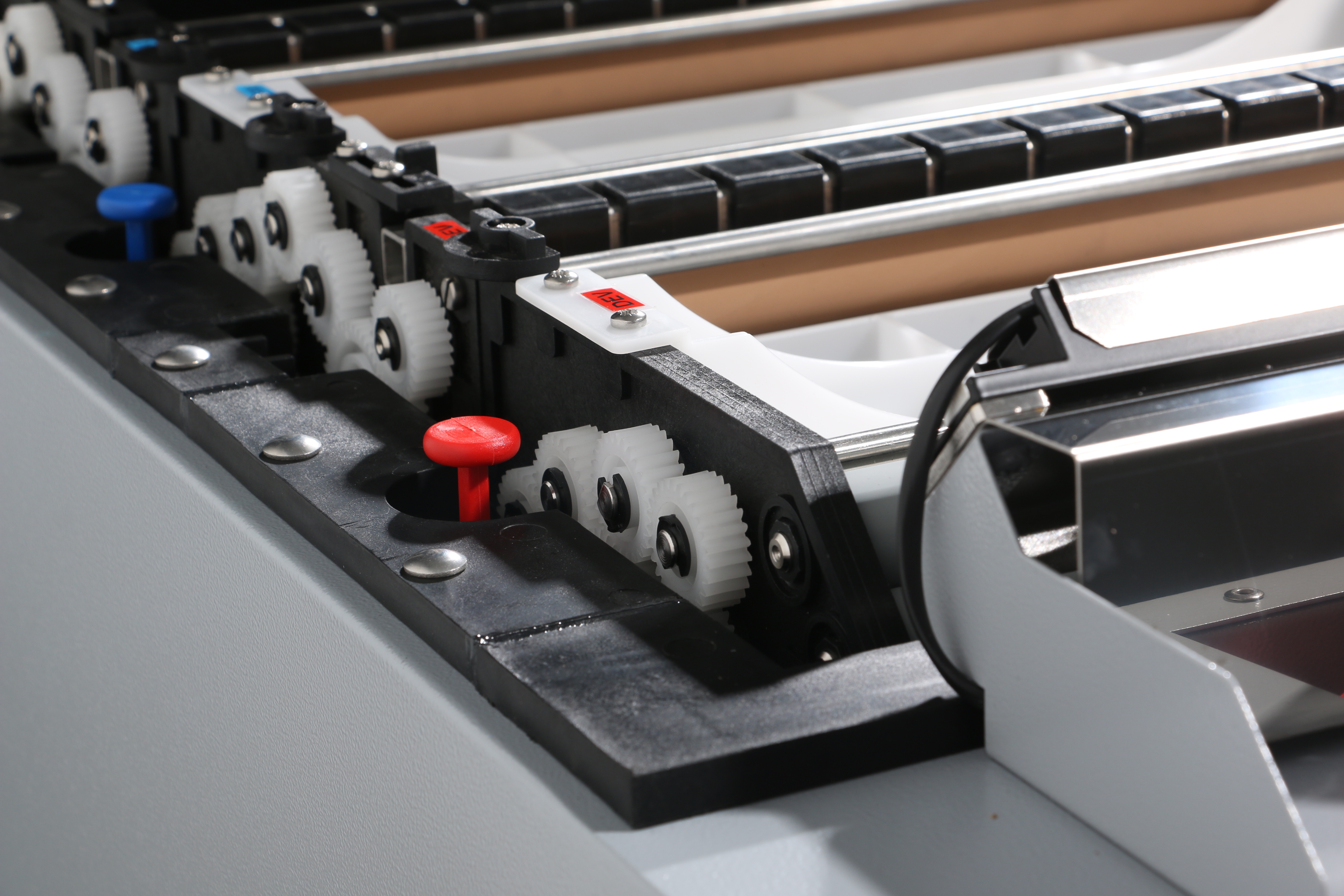

The Colenta INDX 900E uses LVTT (Low Volume Thin Tank) rack design, chemistry fully protected against air oxidation with Intermediate Wash between developer and fixer rack for reduced maintenance (cleaning requirements by the user), for reduced carryover of developer/contamination of fixer and reduced fixer replenishment. The processor has a Programmable Microprocessor Controller incl. Sensorbar (4 pulsed IR-sensors) for exact Detection of Film Area for precise replenishment of chemistry, to control Anti-oxidation/Standby-Replenishment Cycles, Anti-Crystallisation Cycles, Standby Mode, Processing Time/Speed and Dryer/Developer Temperature of the processor. with Inline Heat Exchanger for developer/fixer heating with overheat protection and cold water cooling facility (± 0.2°C for dev.). with Warm Air Dryer with overheat protection. with maintenance free, Inline Gear Drive System (no worm gear drive used).

Specifications of Colenta INDX 900E:

Processing applications	All types of industrial x-ray films
Film thickness	Minimum 0.10mm
Material width	Minimum 6cm – Maximum 36cm
Material length	Minimum 10cm

Time in Developer	Minimum 30 seconds	Maximum 150 seconds
Intake Speed	38cm/minute	8cm/minute
Cycle Time	2.7 min (162 seconds)	13.6 min (816 sec)

Tank Capacity

Developer	2.6 Litres
Fixer	2.5 Litres
Wash water	3 Litres

Solution heating (Fix and Dev)	Variable in a range of 18°C – 43°C
Dryer	Warm Air

Replenishment	Fully automatic Replenishment is microprocessor controlled and calculated from information received from sensors measuring the width and length of material entering the processor. Replenishment cycles are variable
Power supply	1 / N / PE – 230v (+6% / -10%) 50Hz, 13A 1.7KW (alternatives are available on request)
Water supply	2 way magnetic valve
Wash Water Flow Rate	1.5 Litre/minute when film in process
Wash Water Supply Pressure	3-10 Bar
Wash Water Supply	Filtered at temperature of 10°C – 15°C
