الوصف

Product information

The Kowotest CR Phantom can test all relevant parameters of CR Scanner systems including basic spatial resolution, unsharpness, contrast, MTF, laser beam jitter, scanner slipping and shading. These tests demanded and described in detail in standards ASTM E 2445-14, ISO 16371-1 and EN 14784-1 have to be performed periodically. The KOWOTEST CR Phantom exceeds these standards by including two Duplex wire type IQIs. Measuring points for shading correction are arranged in both axis directions – panorama and landscape. All required information is mapped on the image plate with a single X-ray exposure – the Kowotest CR Phantom need not be rotated to generate the information of the second axis. This results in more accurate test scores and significant time savings.

Specification:

T – Target – Brass	Laser beam jitter, MTF check, Blooming (Flare)
Duplex wire type IQI	Basic spatial resolution, unsharpness
BAM snail	Central beam alignment
Converging line pair IQI	Line pair resolution
EL, EC, ER Measuring points	Shading correction
Cassette positioning locator	Position of cassette (image plate)
Homogenous AL strip	Scanner slipping, shading
Lucite plate	Carrier plate
cm/inch ruler	Linearity check
Contrast Sensitivity Gauge	Contrast sensitivity check
Dimensions	350×430×19mm

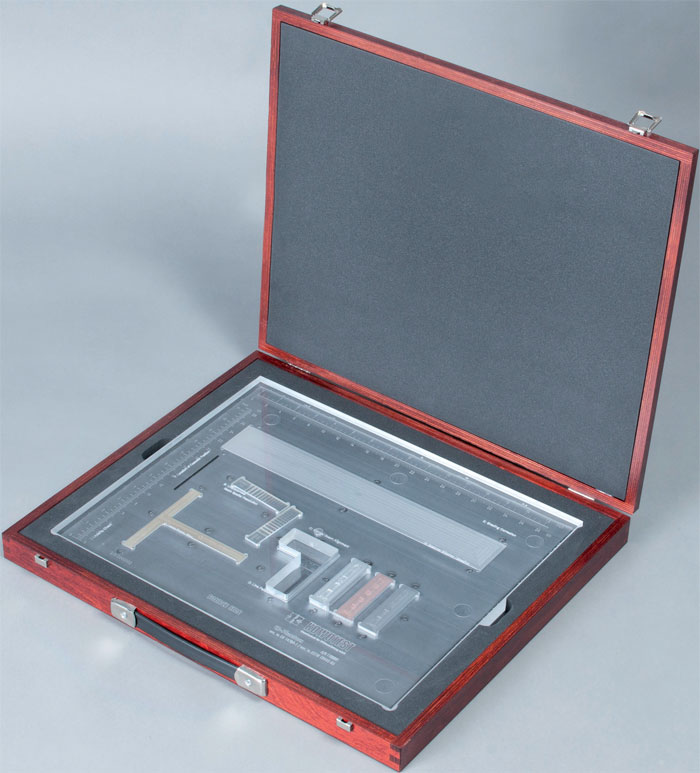

Supplied with a wooden case and test certificates acc. to ASTM E 2445-14, EN 14784-1 ISO 16371-1 and a Declaration of conformity to ISO/IEC 17050-1

CR Phantom type I with 2 duplex wire type IQI’s 13D

CR Phantom type II with 2 duplex wire type IQI’s 15D

 Request a free quote today for a KOWOTEST CR Phantom.

معلومات إضافية

Option	Duplex IQI (13 wires), Duplex IQI (15 wires)
